    Skyworks Solutions Inc. SI8261BCD-C-IS

    Part No.:
    SI8261BCD-C-IS
    Manufacturer:
    Skyworks Solutions Inc.
    Category:
    Isolators - Gate Drivers
    Package:
    6-SOIC (0.295", 7.50mm Width)
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedSI8261BCD-C-IS.pdf
    Description:
    DGTL ISO 5KV 1CH GT DVR 6SDIP GW
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:1,957

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Skyworks Solutions Inc.
    Series:
    -
    Package/Case:
    6-SOIC (0.295", 7.50mm Width)
    Packaging:
    Tube
    Product Status:
    Active
    Technology:
    Capacitive Coupling
    Number of Channels:
    1
    Voltage - Isolation:
    5000Vrms
    Common Mode Transient Immunity (Min):
    35kV/µs
    Propagation Delay tpLH / tpHL (Max):
    60ns, 50ns
    Pulse Width Distortion (Max):
    28ns
    Rise / Fall Time (Typ):
    5.5ns, 8.5ns
    Current - Output High, Low:
    500mA, 1.2A
    Current - Peak Output:
    4A
    Voltage - Forward (Vf) (Typ):
    2.8V (Max)
    Current - DC Forward (If) (Max):
    30 mA
    Voltage - Output Supply:
    13.5V ~ 30V
    Grade:
    Automotive
    Qualification:
    AEC-Q100
    Operating Temperature:
    -40°C ~ 125°C
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    6-SDIP Gull Wing
    Approval Agency:
    CQC, CSA, UR, VDE

    1. How to order SI8261BCD-C-IS on ODK (HK) Electronics Technology Co., Limited?

    Currently, ODK (HK) Electronics Technology Co., Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does ODK (HK) Electronics Technology Co., Limited guarantee that SI8261BCD-C-IS is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the SI8261BCD-C-IS. All suppliers must pass our qualification reviews before they can publish their products including SI8261BCD-C-IS on ODK (HK) Electronics Technology Co., Limited; we pay more attention to the channels and quality of SI8261BCD-C-IS products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the SI8261BCD-C-IS price and inventory displayed accurate?

    The price and inventory of SI8261BCD-C-IS fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of SI8261BCD-C-IS?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SI8261BCD-C-IS we delivered, we will accept the replacement or return of the SI8261BCD-C-IS only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of SI8261BCD-C-IS.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as SI8261BCD-C-IS pin diagram, SI8261BCD-C-IS datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

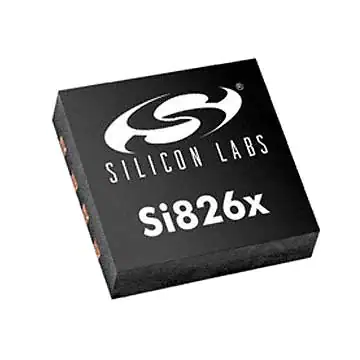

    Image SI8261BCD-C-ISR SI8261BCD-C-IS SI8261BCD-ASR SI8261BCD-AS SI8261BCD-C-IM
    Part Number SI8261BCD-C-ISR SI8261BCD-C-IS SI8261BCD-ASR SI8261BCD-AS SI8261BCD-C-IM
    Manufacturer Skyworks Solutions Inc. Skyworks Solutions Inc. Skyworks Solutions Inc. Skyworks Solutions Inc. Skyworks Solutions Inc.
    Series - - Si826x Si826x -
    Package/Case 6-SOIC (0.295", 7.50mm Width) 6-SOIC (0.295", 7.50mm Width) 6-SOIC (0.295", 7.50mm Width) 6-SOIC (0.295", 7.50mm Width) 8-VELGA
    Packaging Tape & Reel (TR) Tube Tape & Reel (TR) Tube Tray
    Product Status Active Active Active Active Obsolete
    Technology Capacitive Coupling Capacitive Coupling Capacitive Coupling Capacitive Coupling Capacitive Coupling
    Number of Channels 1 1 1 1 1
    Voltage - Isolation 5000Vrms 5000Vrms 5000Vrms 5000Vrms 5000Vrms
    Common Mode Transient Immunity (Min) 35kV/µs 35kV/µs 35kV/µs 35kV/µs 35kV/µs
    Propagation Delay tpLH / tpHL (Max) 60ns, 50ns 60ns, 50ns 60ns, 50ns 60ns, 50ns 60ns, 50ns
    Pulse Width Distortion (Max) 28ns 28ns 28ns 28ns 28ns
    Rise / Fall Time (Typ) 5.5ns, 8.5ns 5.5ns, 8.5ns 5.5ns, 8.5ns 5.5ns, 8.5ns 5.5ns, 8.5ns
    Current - Output High, Low 500mA, 1.2A 500mA, 1.2A 500mA, 1.2A 500mA, 1.2A 500mA, 1.2A
    Current - Peak Output 4A 4A 600mA, 4A 600mA, 4A 4A
    Voltage - Forward (Vf) (Typ) 2.8V (Max) 2.8V (Max) 2.8V (Max) 2.8V (Max) 2.8V (Max)
    Current - DC Forward (If) (Max) 30 mA 30 mA 30 mA 30 mA 30 mA
    Voltage - Output Supply 13.5V ~ 30V 13.5V ~ 30V 6.5V ~ 30V 6.5V ~ 30V 13.5V ~ 30V
    Grade Automotive Automotive Automotive Automotive Automotive
    Qualification AEC-Q100 AEC-Q100 AEC-Q100 AEC-Q100 AEC-Q100
    Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
    Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
    Supplier Device Package 6-SDIP Gull Wing 6-SDIP Gull Wing 6-SDIP Gull Wing 6-SDIP Gull Wing 8-LGA (10x12.5)
    Approval Agency CQC, CSA, UR, VDE CQC, CSA, UR, VDE CQC, CSA, UL, VDE CQC, CSA, UL, VDE CQC, CSA, UR, VDE
