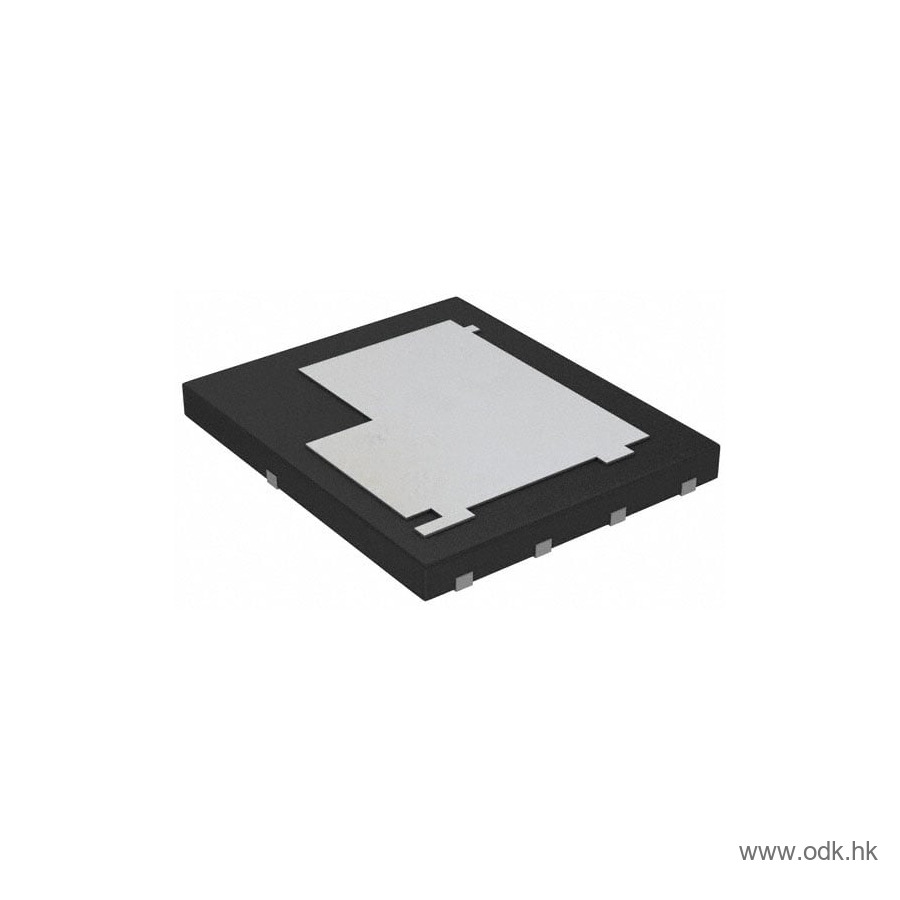

Vishay Siliconix SIDR220DP-T1-RE3

Name: SIDR220DP-T1-RE3
Brand: Vishay Siliconix
SKU: SIDR220DP-T1-RE3

< >

Compare

Part No.:: SIDR220DP-T1-RE3

Manufacturer:: Vishay Siliconix

Category:: FETs, MOSFETs

Package:: PowerPAK® SO-8

Datasheet:: SIDR220DP-T1-RE3.pdf

Description:: N-CHANNEL 25-V (D-S) MOSFET

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:5,970

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Specifications
FAQ
Product Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Vishay Siliconix

Series:: TrenchFET® Gen IV

Package/Case:: PowerPAK® SO-8

Packaging:: Tape & Reel (TR)

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 25 V

Current - Continuous Drain (Id) @ 25°C:: 87.7A (Ta), 100A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 4.5V, 10V

Rds On (Max) @ Id, Vgs:: 5.8mOhm @ 20A, 10V

Vgs(th) (Max) @ Id:: 2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 200 nC @ 10 V

Vgs (Max):: +16V, -12V

Input Capacitance (Ciss) (Max) @ Vds:: 10850 pF @ 10 V

FET Feature:: -

Power Dissipation (Max):: 6.25W (Ta), 125W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: PowerPAK® SO-8DC
