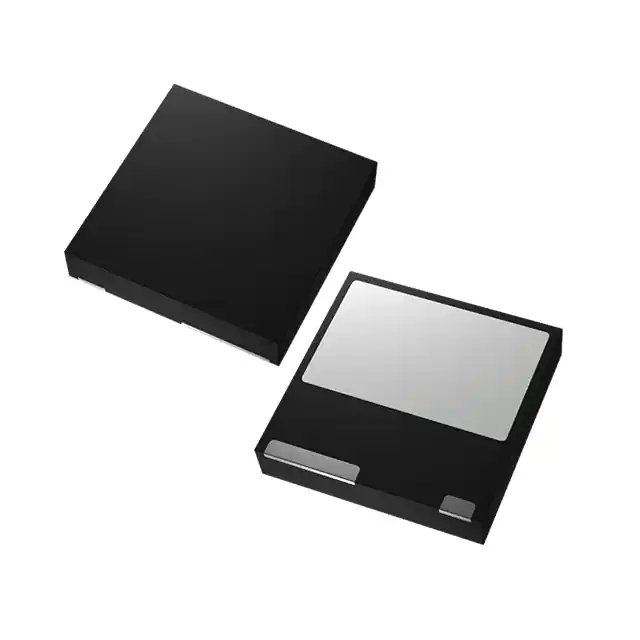

    Transphorm TPH3206LS

    !
    Obsolete 鈥?End of Life
    The manufacturer has discontinued this part. We can still source it through our global supply network 鈥?tell us the quantity you need and we will confirm availability.
    Request availability
    Part No.:
    TPH3206LS
    Manufacturer:
    Transphorm
    Category:
    FETs, MOSFETs
    Package:
    3-PowerDFN
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedTPH3206LS.pdf
    Description:
    GANFET N-CH 600V 17A PQFN
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:6,729

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Transphorm
    Series:
    -
    Package/Case:
    3-PowerDFN
    Packaging:
    Tube
    Product Status:
    Obsolete
    FET Type:
    N-Channel
    Technology:
    GaNFET (Gallium Nitride)
    Drain to Source Voltage (Vdss):
    600 V
    Current - Continuous Drain (Id) @ 25°C:
    17A (Tc)
    Drive Voltage (Max Rds On, Min Rds On):
    10V
    Rds On (Max) @ Id, Vgs:
    180mOhm @ 11A, 8V
    Vgs(th) (Max) @ Id:
    2.6V @ 500µA
    Gate Charge (Qg) (Max) @ Vgs:
    9.3 nC @ 4.5 V
    Vgs (Max):
    ±18V
    Input Capacitance (Ciss) (Max) @ Vds:
    760 pF @ 480 V
    FET Feature:
    -
    Power Dissipation (Max):
    96W (Tc)
    Operating Temperature:
    -55°C ~ 175°C (TJ)
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    3-PQFN (8x8)
