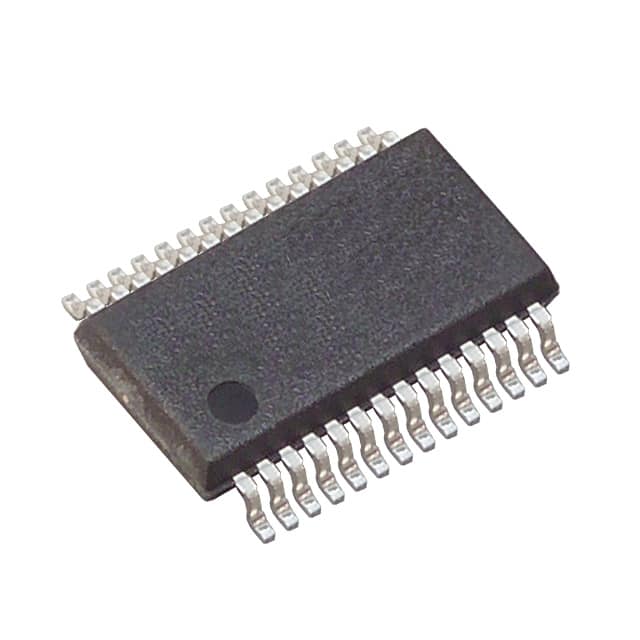

    Texas Instruments TPIC46L03DB

    !
    Obsolete 鈥?End of Life
    The manufacturer has discontinued this part. We can still source it through our global supply network 鈥?tell us the quantity you need and we will confirm availability.
    Request availability
    Part No.:
    TPIC46L03DB
    Manufacturer:
    Texas Instruments
    Category:
    Gate Drivers
    Package:
    28-SSOP (0.209", 5.30mm Width)
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedTPIC46L03DB.pdf
    Description:
    IC GATE DRVR LOW-SIDE 28SSOP
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:Inquiry

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Texas Instruments
    Series:
    -
    Package/Case:
    28-SSOP (0.209", 5.30mm Width)
    Packaging:
    Tube
    Product Status:
    Obsolete
    Programmable:
    Not Verified
    Driven Configuration:
    Low-Side
    Channel Type:
    Independent
    Number of Drivers:
    6
    Gate Type:
    N-Channel MOSFET
    Voltage - Supply:
    4.5V ~ 5.5V
    Logic Voltage - VIL, VIH:
    -
    Current - Peak Output (Source, Sink):
    1.2mA, 1.2mA
    Input Type:
    Non-Inverting
    High Side Voltage - Max (Bootstrap):
    -
    Rise / Fall Time (Typ):
    3.5µs, 3µs
    Operating Temperature:
    -40°C ~ 150°C (TJ)
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    28-SSOP
