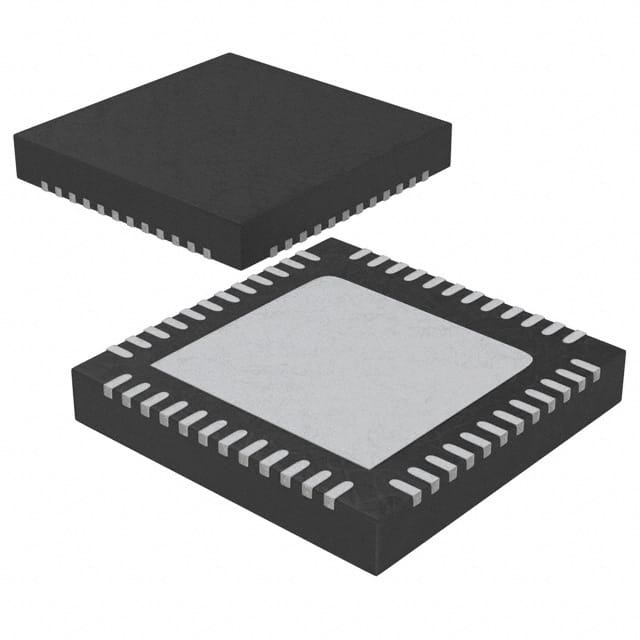

    STMicroelectronics L6206Q

    Part No.:
    L6206Q
    Manufacturer:
    STMicroelectronics
    Category:
    Full Half-Bridge (H Bridge) Drivers
    Package:
    48-VFQFN Exposed Pad
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedL6206Q.pdf
    Description:
    IC HALF BRIDGE DRV 2.5A 48VFQFPN
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:1,741

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    STMicroelectronics
    Series:
    -
    Package/Case:
    48-VFQFN Exposed Pad
    Packaging:
    Tray
    Product Status:
    Active
    Output Configuration:
    Half Bridge (4)
    Applications:
    DC Motors, Stepper Motors, Voltage Regulators
    Interface:
    Logic
    Load Type:
    Inductive
    Technology:
    BCDMOS
    Rds On (Typ):
    280mOhm LS, 340mOhm HS
    Current - Output / Channel:
    2.5A
    Current - Peak Output:
    5.6A
    Voltage - Supply:
    8V ~ 52V
    Voltage - Load:
    8V ~ 52V
    Operating Temperature:
    -25°C ~ 125°C (TJ)
    Grade:
    -
    Qualification:
    -
    Features:
    Bootstrap Circuit
    Fault Protection:
    Current Limiting, Over Temperature, UVLO
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    48-VFQFPN (7x7)
