    Renesas Electronics Corporation RJL5014DPP-A0#T2

    Part No.:
    RJL5014DPP-A0#T2
    Manufacturer:
    Renesas Electronics Corporation
    Category:
    FETs, MOSFETs
    Package:

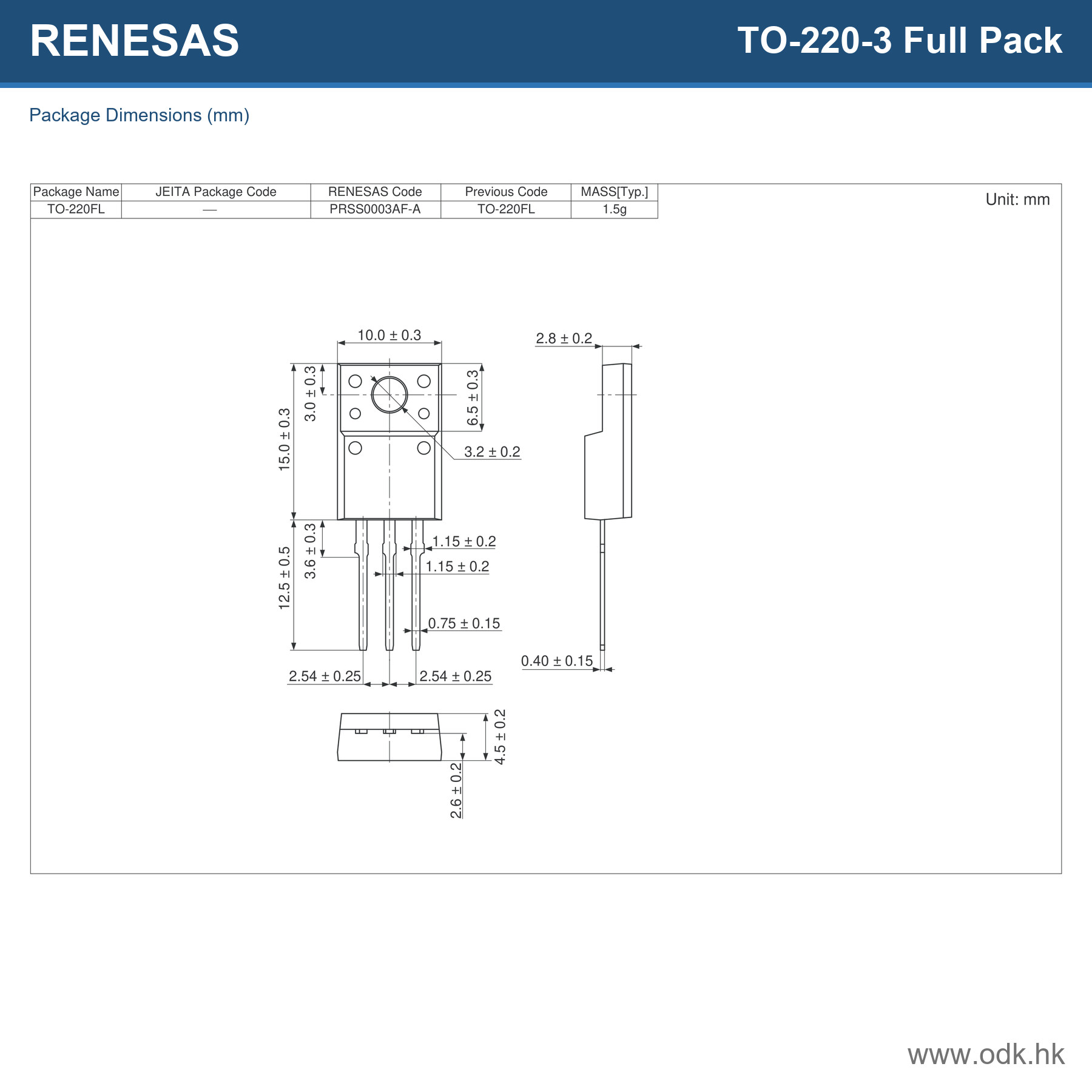

    TO-220-3 Full Pack
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedRJL5014DPP-A0#T2.pdf
    Description:
    ABU / MOSFET HV
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:5,158

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Renesas Electronics Corporation
    Series:
    -
    Package/Case:
    TO-220-3 Full Pack
    Packaging:
    Tube
    Product Status:
    Active
    FET Type:
    N-Channel
    Technology:
    MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss):
    500 V
    Current - Continuous Drain (Id) @ 25°C:
    19A (Ta)
    Drive Voltage (Max Rds On, Min Rds On):
    10V
    Rds On (Max) @ Id, Vgs:
    400mOhm @ 9.5A, 10V
    Vgs(th) (Max) @ Id:
    4V @ 1mA
    Gate Charge (Qg) (Max) @ Vgs:
    43 nC @ 10 V
    Vgs (Max):
    ±30V
    Input Capacitance (Ciss) (Max) @ Vds:
    1700 pF @ 25 V
    FET Feature:
    -
    Power Dissipation (Max):
    35W (Ta)
    Operating Temperature:
    150°C
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Through Hole
    Supplier Device Package:
    TO-220FN

    1. How to order RJL5014DPP-A0#T2 on ODK (HK) Electronics Technology Co., Limited?

    Currently, ODK (HK) Electronics Technology Co., Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does ODK (HK) Electronics Technology Co., Limited guarantee that RJL5014DPP-A0#T2 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the RJL5014DPP-A0#T2. All suppliers must pass our qualification reviews before they can publish their products including RJL5014DPP-A0#T2 on ODK (HK) Electronics Technology Co., Limited; we pay more attention to the channels and quality of RJL5014DPP-A0#T2 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the RJL5014DPP-A0#T2 price and inventory displayed accurate?

    The price and inventory of RJL5014DPP-A0#T2 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of RJL5014DPP-A0#T2?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RJL5014DPP-A0#T2 we delivered, we will accept the replacement or return of the RJL5014DPP-A0#T2 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of RJL5014DPP-A0#T2.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as RJL5014DPP-A0#T2 pin diagram, RJL5014DPP-A0#T2 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image RJL5014DPP-A0#T2 RJL5014DPP-00#T2 RJL5014DPP-E0#T2
    Part Number RJL5014DPP-A0#T2 RJL5014DPP-00#T2 RJL5014DPP-E0#T2
    Manufacturer Renesas Electronics Corporation Renesas Electronics Corporation Renesas
    Series - * -
    Package/Case TO-220-3 Full Pack - TO-220-3 Full Pack
    Packaging Tube Bulk Bulk
    Product Status Active Active Obsolete
    FET Type N-Channel - N-Channel
    Technology MOSFET (Metal Oxide) - MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss) 500 V - 500 V
    Current - Continuous Drain (Id) @ 25°C 19A (Ta) - 19A (Ta)
    Drive Voltage (Max Rds On, Min Rds On) 10V - 10V
    Rds On (Max) @ Id, Vgs 400mOhm @ 9.5A, 10V - 400mOhm @ 9.5A, 10V
    Vgs(th) (Max) @ Id 4V @ 1mA - 4V @ 1mA
    Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V - 43 nC @ 10 V
    Vgs (Max) ±30V - ±30V
    Input Capacitance (Ciss) (Max) @ Vds 1700 pF @ 25 V - 1700 pF @ 25 V
    FET Feature - - -
    Power Dissipation (Max) 35W (Ta) - 35W (Tc)
    Operating Temperature 150°C - 150°C
    Grade - - -
    Qualification - - -
    Mounting Type Through Hole - Through Hole
    Supplier Device Package TO-220FN - TO-220FP
