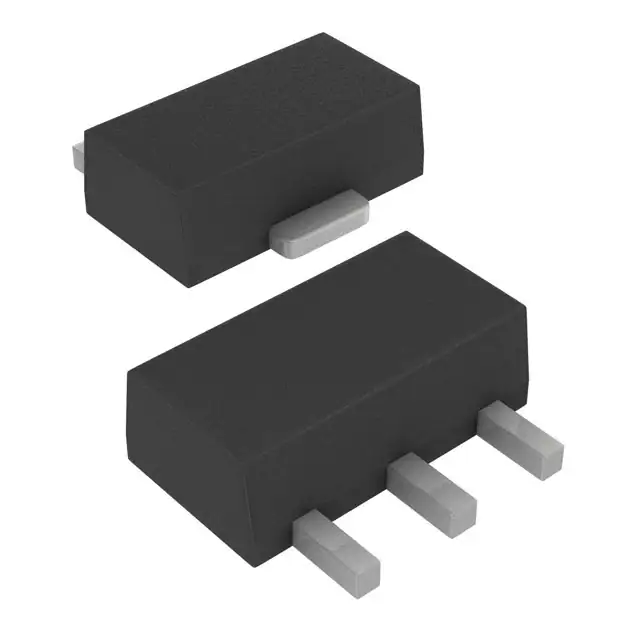

    Microchip Technology TP2522N8-G

    Part No.:
    TP2522N8-G
    Manufacturer:
    Microchip Technology
    Category:
    FETs, MOSFETs
    Package:
    TO-243AA
    Datasheet:
    ODK (HK) Electronics Technology Co., LimitedTP2522N8-G.pdf
    Description:
    MOSFET P-CH 220V 260MA TO243AA
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:4,596

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Microchip Technology
    Series:
    -
    Package/Case:
    TO-243AA
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    FET Type:
    P-Channel
    Technology:
    MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss):
    220 V
    Current - Continuous Drain (Id) @ 25°C:
    260mA (Tj)
    Drive Voltage (Max Rds On, Min Rds On):
    4.5V, 10V
    Rds On (Max) @ Id, Vgs:
    12Ohm @ 200mA, 10V
    Vgs(th) (Max) @ Id:
    2.4V @ 1mA
    Gate Charge (Qg) (Max) @ Vgs:
    -
    Vgs (Max):
    ±20V
    Input Capacitance (Ciss) (Max) @ Vds:
    125 pF @ 25 V
    FET Feature:
    -
    Power Dissipation (Max):
    1.6W (Ta)
    Operating Temperature:
    -55°C ~ 150°C (TJ)
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    TO-243AA (SOT-89)
