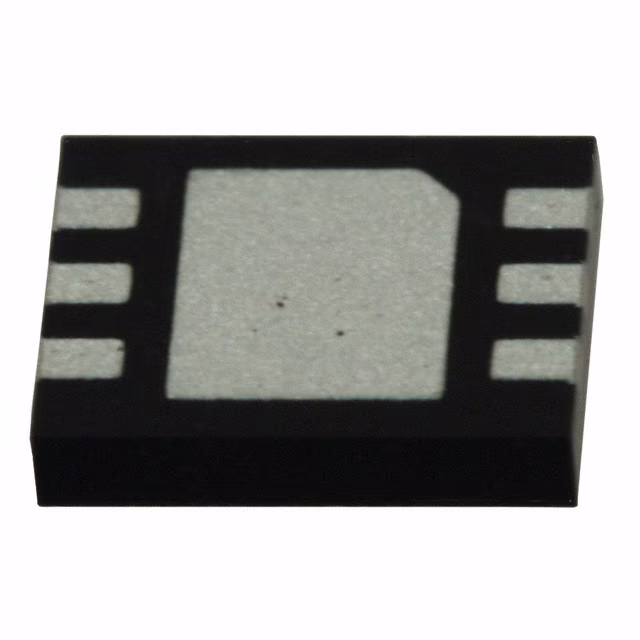

    IXYS IXDN502D1

    !
    Obsolete 鈥?End of Life
    The manufacturer has discontinued this part. We can still source it through our global supply network 鈥?tell us the quantity you need and we will confirm availability.
    Request availability
    Part No.:
    IXDN502D1
    Manufacturer:
    IXYS
    Category:
    Gate Drivers
    Package:
    6-VDFN Exposed Pad
    Description:
    IC GATE DRVR LOW-SIDE 6DFN
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:Inquiry

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    IXYS
    Series:
    -
    Package/Case:
    6-VDFN Exposed Pad
    Packaging:
    Box
    Product Status:
    Obsolete
    Programmable:
    Not Verified
    Driven Configuration:
    Low-Side
    Channel Type:
    Independent
    Number of Drivers:
    2
    Gate Type:
    IGBT, N-Channel, P-Channel MOSFET
    Voltage - Supply:
    4.5V ~ 30V
    Logic Voltage - VIL, VIH:
    0.8V, 3V
    Current - Peak Output (Source, Sink):
    2A, 2A
    Input Type:
    Non-Inverting
    High Side Voltage - Max (Bootstrap):
    -
    Rise / Fall Time (Typ):
    7.5ns, 6.5ns
    Operating Temperature:
    -55°C ~ 150°C (TJ)
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    6-DFN (4x5)
