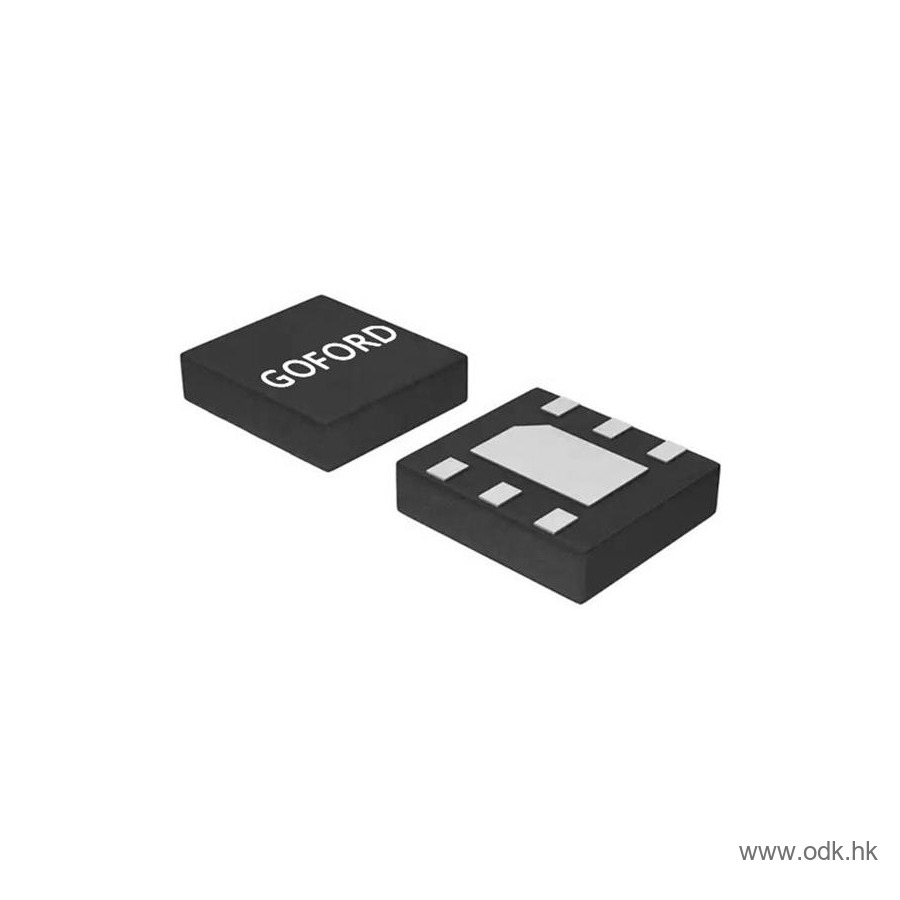

Goford Semiconductor G2014

Name: G2014
Brand: Goford Semiconductor
SKU: G2014

< >

Compare

Part No.:: G2014

Manufacturer:: Goford Semiconductor

Category:: FETs, MOSFETs

Package:: 6-WDFN Exposed Pad

Datasheet:: G2014.pdf

Description:: N20V,RD(MAX)<9M@4.5V,RD(MAX)<11M

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:2,940

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Specifications
FAQ
Product Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Goford Semiconductor

Series:: TrenchFET®

Package/Case:: 6-WDFN Exposed Pad

Packaging:: Cut Tape (CT)

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 20 V

Current - Continuous Drain (Id) @ 25°C:: 14A (Tc)

Drive Voltage (Max Rds On, Min Rds On):: 2.5V, 10V

Rds On (Max) @ Id, Vgs:: 7mOhm @ 5A, 10V

Vgs(th) (Max) @ Id:: 900mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 17.5 nC @ 4.5 V

Vgs (Max):: ±12V

Input Capacitance (Ciss) (Max) @ Vds:: 1710 pF @ 10 V

FET Feature:: -

Power Dissipation (Max):: 3W (Tc)

Operating Temperature:: -55°C ~ 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: 6-DFN (2x2)

1. How to order G2014 on ODK (HK) Electronics Technology Co., Limited?

Currently, ODK (HK) Electronics Technology Co., Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does ODK (HK) Electronics Technology Co., Limited guarantee that G2014 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the G2014. All suppliers must pass our qualification reviews before they can publish their products including G2014 on ODK (HK) Electronics Technology Co., Limited; we pay more attention to the channels and quality of G2014 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the G2014 price and inventory displayed accurate?

The price and inventory of G2014 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of G2014?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the G2014 we delivered, we will accept the replacement or return of the G2014 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of G2014.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as G2014 pin diagram, G2014 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

Part Number	G2014	G2014
Manufacturer	Goford Semiconductor	Goford Semiconductor
Series	TrenchFET®	TrenchFET®
Package/Case	6-WDFN Exposed Pad	6-WDFN Exposed Pad
Packaging	Cut Tape (CT)	Tape & Reel (TR)
Product Status	Active	Active
FET Type	N-Channel	N-Channel
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V	-
Current - Continuous Drain (Id) @ 25°C	14A (Tc)	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V	2.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 5A, 10V	7mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	900mV @ 250µA	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.5 nC @ 4.5 V	-
Vgs (Max)	±12V	±12V
Input Capacitance (Ciss) (Max) @ Vds	1710 pF @ 10 V	-
FET Feature	-	-
Power Dissipation (Max)	3W (Tc)	3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Grade	-	-
Qualification	-	-
Mounting Type	Surface Mount	Surface Mount
Supplier Device Package	6-DFN (2x2)	6-DFN (2x2)
