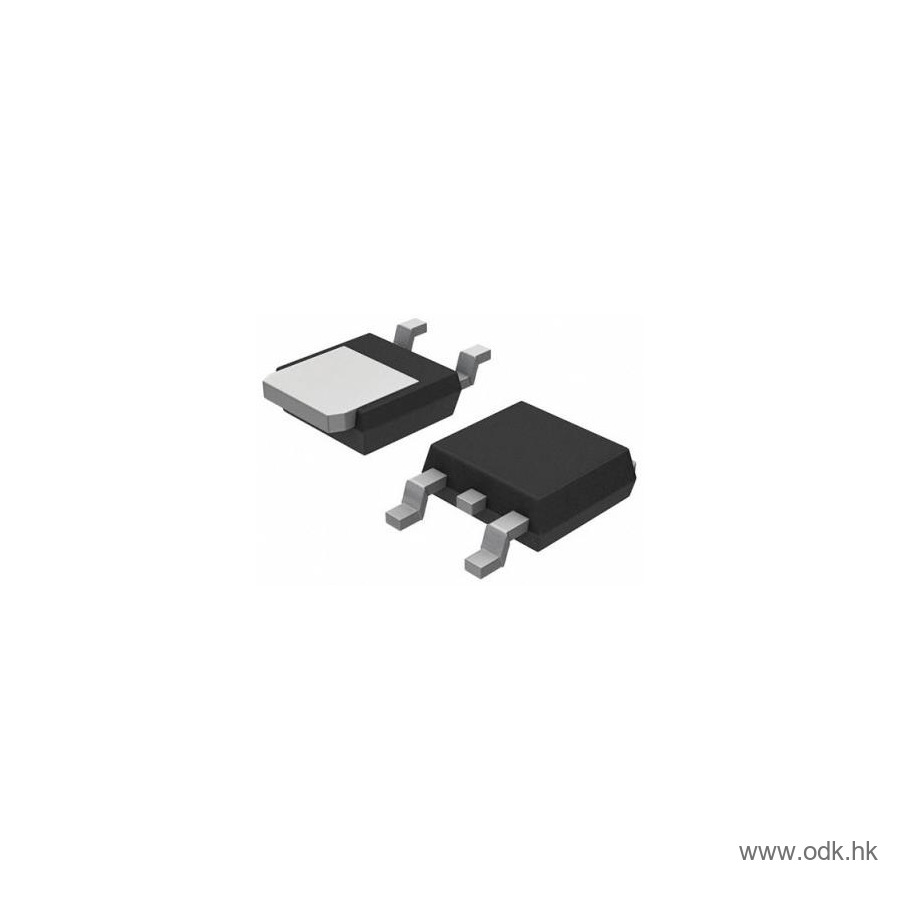

Analog Power Inc. AM40N04-30D

Name: AM40N04-30D
Brand: Analog Power Inc.
SKU: AM40N04-30D

< >

Compare

Part No.:: AM40N04-30D

Manufacturer:: Analog Power Inc.

Category:: FETs, MOSFETs

Package:: TO-252-3, DPAK (2 Leads + Tab), SC-63

Datasheet:: AM40N04-30D.pdf

Description:: MOSFET N-CH 40V 33A TO-252

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:980

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Specifications
FAQ
Product Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Analog Power Inc.

Series:: -

Package/Case:: TO-252-3, DPAK (2 Leads + Tab), SC-63

Packaging:: Bulk

Product Status:: Active

FET Type:: N-Channel

Technology:: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):: 40 V

Current - Continuous Drain (Id) @ 25°C:: 33A (Ta)

Drive Voltage (Max Rds On, Min Rds On):: 4.5V, 10V

Rds On (Max) @ Id, Vgs:: 32mOhm @ 33A, 10V

Vgs(th) (Max) @ Id:: 1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:: 3 nC @ 5.5 V

Vgs (Max):: ±20V

Input Capacitance (Ciss) (Max) @ Vds:: 186 pF @ 15 V

FET Feature:: -

Power Dissipation (Max):: 50W (Ta)

Operating Temperature:: -55°C ~ 175°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: TO-252
