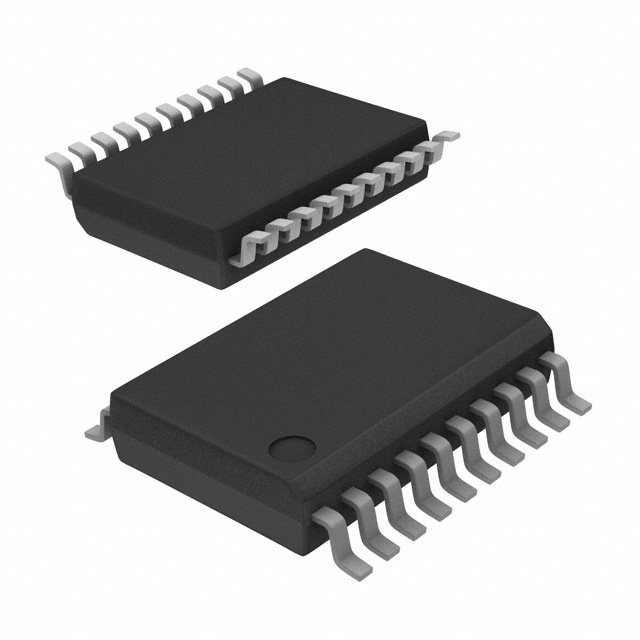

    Analog Devices Inc./Maxim Integrated MAX22346CAAP+T

    Part No.:
    MAX22346CAAP+T
    Manufacturer:
    Analog Devices Inc./Maxim Integrated
    Category:
    Digital Isolators
    Package:
    20-SSOP (0.209", 5.30mm Width)
    Description:
    DIGITAL ISOL 4CH LOW PWR HIGH SP
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Inventory:Inquiry

    Please send an inquiry. Send us your inquiry, and we will respond immediately.

    Part Number
    Quantity*
    Price
    Name*
    Company*
    Email*
    Comments
    • Specifications
    • FAQ
    • Product Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Analog Devices Inc./Maxim Integrated
    Series:
    -
    Package/Case:
    20-SSOP (0.209", 5.30mm Width)
    Packaging:
    Tape & Reel (TR)
    Product Status:
    Active
    Technology:
    Capacitive Coupling
    Type:
    CAN, RS422, RS485, SPI
    Isolated Power:
    No
    Number of Channels:
    4
    Inputs - Side 1/Side 2:
    2/2
    Channel Type:
    Unidirectional
    Voltage - Isolation:
    3750Vrms
    Common Mode Transient Immunity (Min):
    50kV/µs (Typ)
    Data Rate:
    200Mbps
    Propagation Delay tpLH / tpHL (Max):
    9.2ns, 9.4ns
    Pulse Width Distortion (Max):
    2ns
    Rise / Fall Time (Typ):
    0.8ns, 1ns (Max)
    Voltage - Supply:
    1.71V ~ 5.5V
    Grade:
    -
    Qualification:
    -
    Operating Temperature:
    -40°C ~ 125°C
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    20-SSOP
