Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

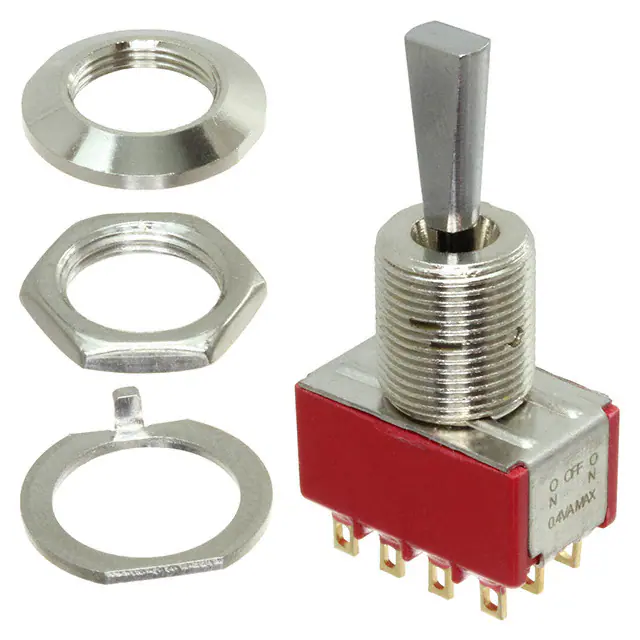

7403T2PZBESWITCH TOGGLE 4PDT 0.4VA 20V C&K |
9 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7413SPY1ZQESWITCH TOGGLE DP3T 5A 120V C&K |
16 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
PT202SQQSWITCH TOGGLE DPST 15A 277V C&K |
16 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|

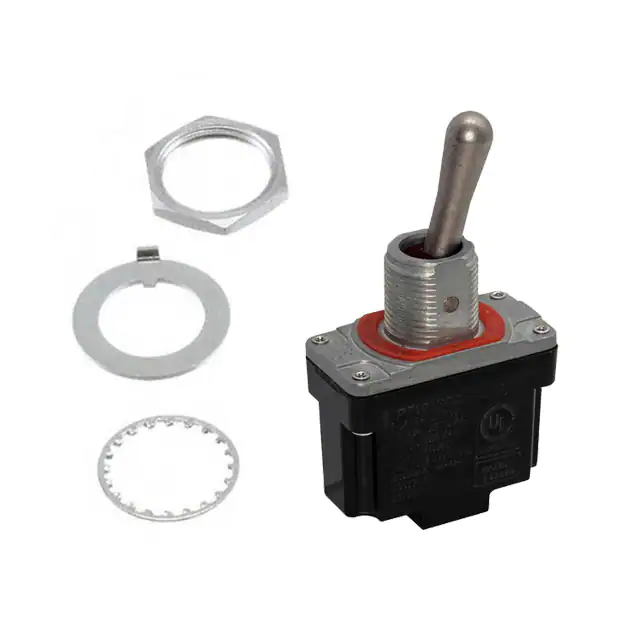

PT202SZQSWITCH TOGGLE DPST 15A 277V C&K |
51 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
M83731/16-261SWITCH TOGGLE DPDT 5A 115V C&K |
0 |
|
Datasheet |
M83731 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
M83731/16-311SWITCH TOGGLE SPDT 5A 115V C&K |
0 |
|
Datasheet |
M83731 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
9221SH3Z4QDSWITCH TOGGLE DPDT 10A 125V C&K |
11 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

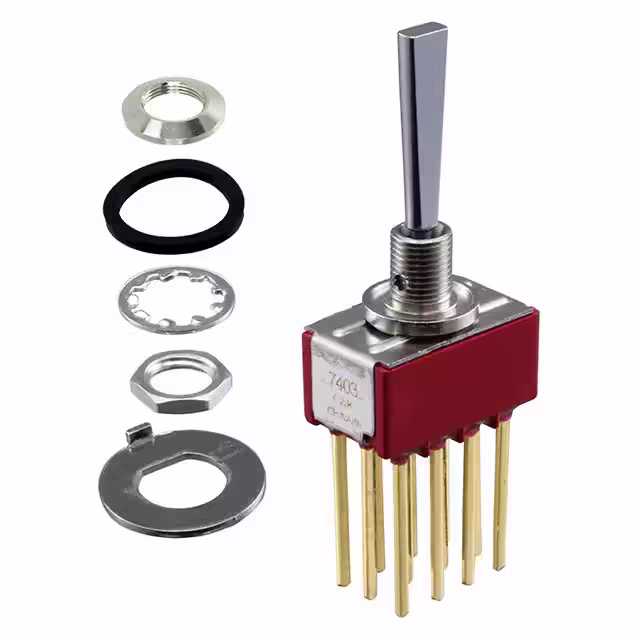

7403P1CWWBESWITCH TOGGLE 4PDT 0.4VA 20V C&K |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01MD1AVBESWITCH TOGGLE SPDT 0.4VA 20V C&K |
19 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C |
|
E101SD1AV2BETOGGLE C&K |
40 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C |
