Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

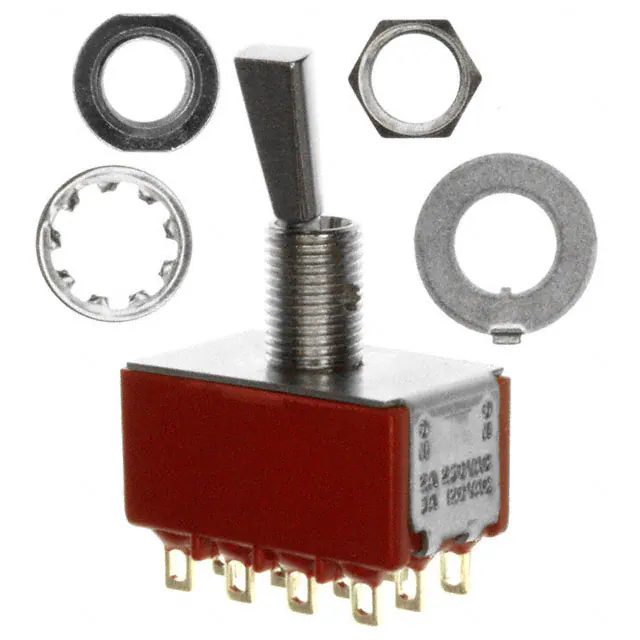

7408P3YZQESWITCH TOGGLE 4PDT 5A 120V C&K |
17 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

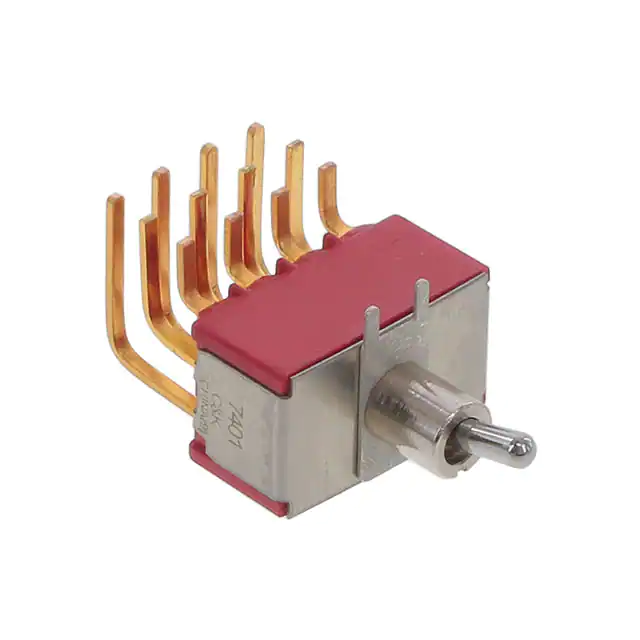

7401MD9AV2BESWITCH TOGGLE 4PDT 0.4VA 20V C&K |
26 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
PT205SSQSWITCH TOGGLE DPDT 10A 277V C&K |
60 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
PT205SQQSWITCH TOGGLE DPDT 10A 277V C&K |
90 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
PT203SQQSWITCH TOGGLE DPDT 15A 277V C&K |
34 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
PT201SQQSWITCH TOGGLE DPDT 15A 277V C&K |
27 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
7411T1CWV8QESWITCH TOGGLE DP3T 5A 120V C&K |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
PT208SZQSWITCH TOGGLE DPDT 10A 277V C&K |
14 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | On-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
7415P3YZQESWITCH TOGGLE DP3T 5A 120V C&K |
49 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

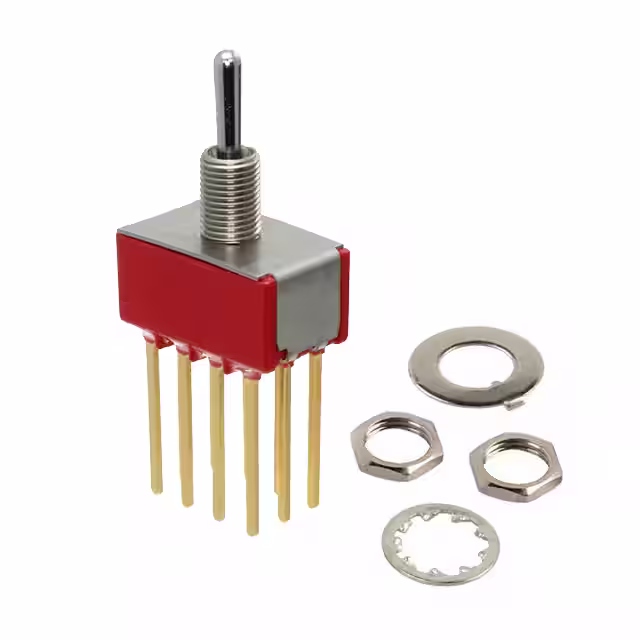

7415SYWGESWITCH TOGGLE DP3T 5A 120V C&K |
16 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
