Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEMH30,115NEXPERIA PEMH30 - SMALL SIGNAL B NXP Semiconductors |
80,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | - | 30 @ 20mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
PEMB15,115NOW NEXPERIA PEMB15 - SMALL SIGN NXP USA Inc. |
62,428 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB1,115NOW NEXPERIA PEMB1 - SMALL SIGNA NXP USA Inc. |
34,840 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB4,115NOW NEXPERIA PEMB4 - SMALL SIGNA NXP USA Inc. |
28,821 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 200 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMH17,115NOW NEXPERIA PEMH17 - SMALL SIGN NXP USA Inc. |
24,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB17,115NEXPERIA PEMB17 - SMALL SIGNAL B NXP Semiconductors |
12,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMD19,115NEXPERIA PEMD19 - SMALL SIGNAL B NXP Semiconductors |
12,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | - | 100 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB18,115NEXPERIA PEMB18 - SMALL SIGNAL B NXP Semiconductors |
12,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 10kOhms | 50 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB16,115NEXPERIA PEMB16 - SMALL SIGNAL B NXP Semiconductors |
12,000 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|

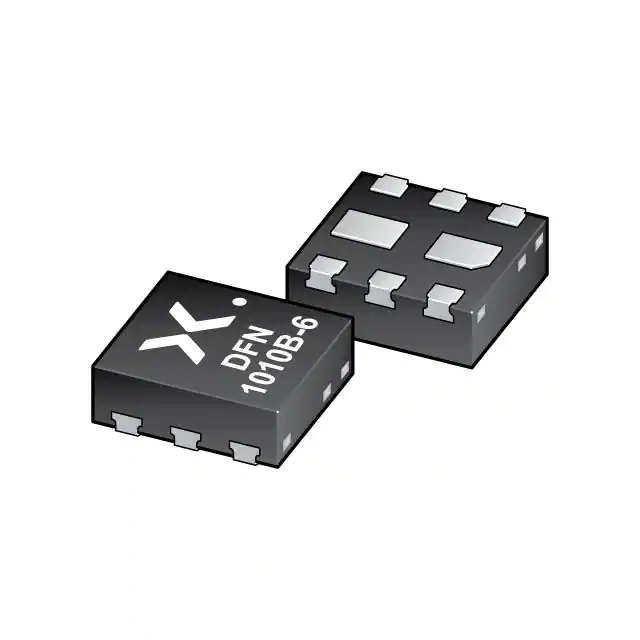

PQMD2147PQMD2 - NPN/PNP RESISTOR-EQUIPPE NXP Semiconductors |
10,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
