Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBLS4001D,115TRANS NPN PREBIAS/PNP 0.6W 6TSOP NXP USA Inc. |
63,499 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PEMB24,115TRANS 2PNP PREBIAS 0.3W SOT666 NXP USA Inc. |
20,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PBLS4002Y,115NEXPERIA PBLS4002Y - SMALL SIGNA NXP Semiconductors |
95,122 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 1 NPN - Pre-Biased, 1 PNP | 500mA | 40V | 4.7kOhms | 4.7kOhms | 200 @ 10mA, 2V | 350mV @ 50mA, 500mA | 1µA | 300MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PBLS1504V,115TRANS NPN PREBIAS/PNP SOT666 NXP USA Inc. |
4,632 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 15V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 150 @ 100mA, 2V | 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA | 1µA, 100nA | 280MHz | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PBLS4004V,115TRANS NPN PREBIAS/PNP SOT666 NXP USA Inc. |
7,203 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 40V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 150 @ 100mA, 2V | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 1µA | 300MHz | 300mW | - | - | Surface Mount | SOT-666 |
|
PBLS2002S,115TRANS NPN PREBIAS/PNP 1.5W 8SO NXP USA Inc. |
7,006 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 3A | 50V, 20V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V / 150 @ 2A, 2V | 150mV @ 500µA, 10mA / 355mV @ 300mA, 3A | 1µA, 100nA | 100MHz | 1.5W | - | - | Surface Mount | 8-SO |
|

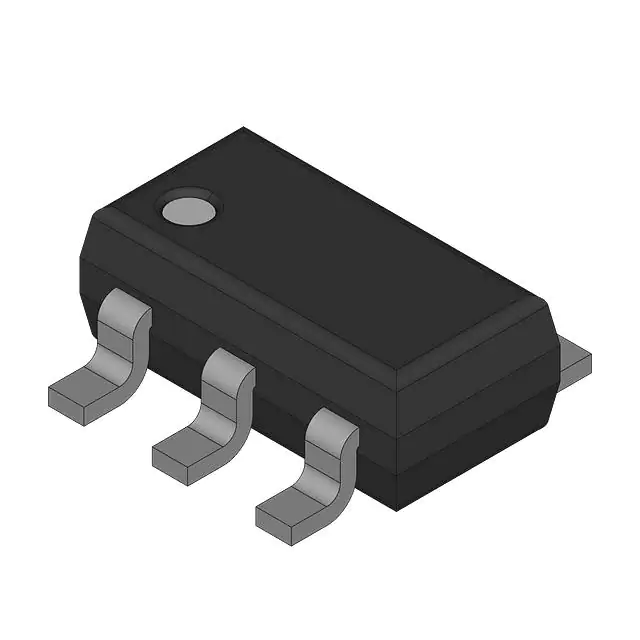

PBLS6021D,115TRANS NPN PREBIAS/PNP 6TSOP NXP USA Inc. |
162,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBLS6022D,115TRANS PNP PREBIAS/PNP 6TSOP NXP USA Inc. |
135,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBLS2023D,115TRANS PREBIAS DUAL PNP 6TSOP NXP USA Inc. |
12,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBLS2003S,115TRANS NPN PREBIAS/PNP 1.5W 8SO NXP USA Inc. |
4,922 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 3A | 50V, 20V | 10kOhms | 10kOhms | 30 @ 5mA, 5V / 150 @ 2A, 2V | 150mV @ 500µA, 10mA / 355mV @ 300mA, 3A | 1µA, 100nA | 100MHz | 1.5W | - | - | Surface Mount | 8-SO |
