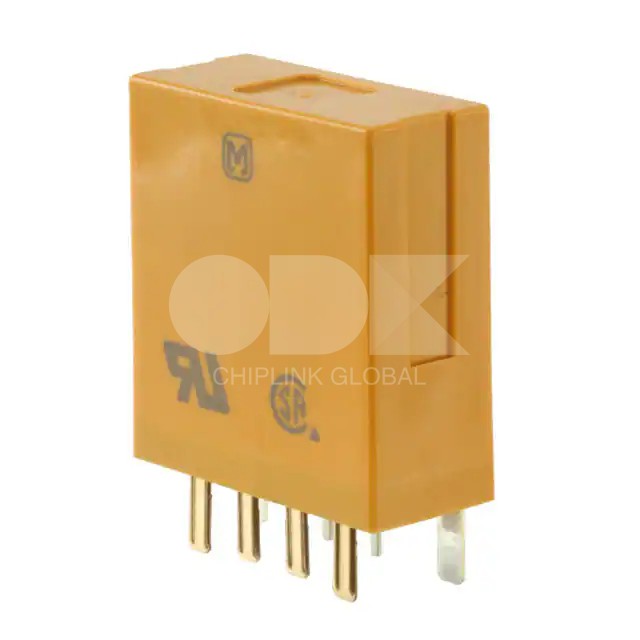

Panasonic Electric Works NC2EBD-JP-DC12V

Compare

Part No.:: NC2EBD-JP-DC12V

Manufacturer:: Panasonic Electric Works

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: NC2EBD-JP-DC12V.pdf

Description:: RELAY GEN PURPOSE DPDT 5A 12V

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:16

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Specifications
FAQ
Product Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Panasonic Electric Works

Series:: NC

Packaging:: Tube

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 12VDC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 5 A

Switching Voltage:: 250VAC - Max

Load - Max Switching:: 1250VA

Coil Current:: 30 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: PC Pin

Seal Rating:: Sealed - Fully

Coil Insulation:: -

Must Operate Voltage:: 9.6 VDC

Must Release Voltage:: 1.2 VDC

Operate Time:: 20 ms

Release Time:: 10 ms

Operating Temperature:: -40°C ~ 70°C

Contact Material:: Silver Nickel (AgNi), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -
