Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

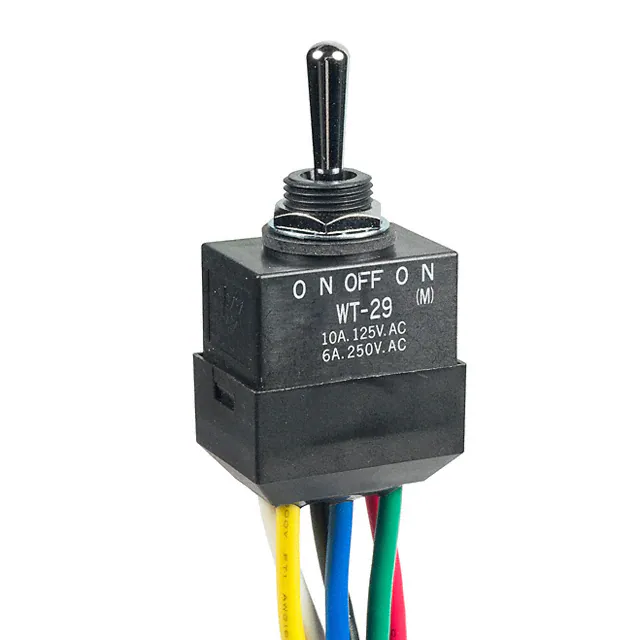

WT29LSWITCH TOGGLE DPDT 10A 125V NKK Switches |
9 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

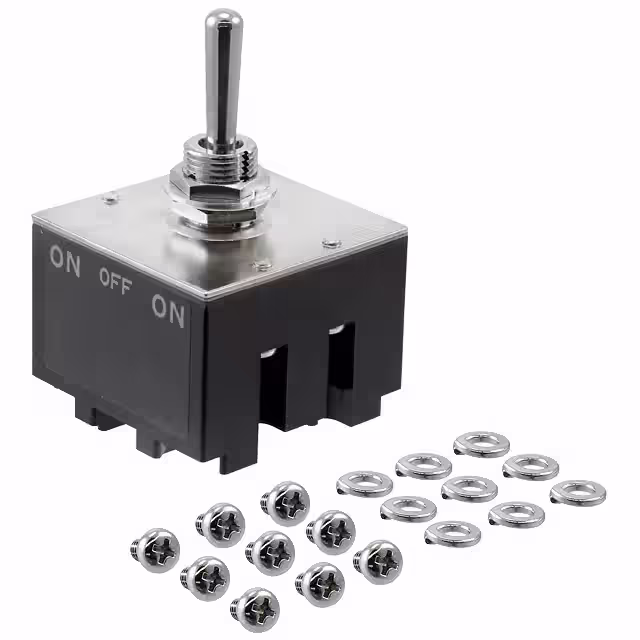

S833/CULSWITCH TOGGLE 3PDT 30A 125V NKK Switches |
2 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S833/USWITCH TOGGLE 3PDT 30A 125V NKK Switches |
29 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
B22KV-ACSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
2,000 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
A27AWSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
2,000 |
|
Datasheet |
A | Tray | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

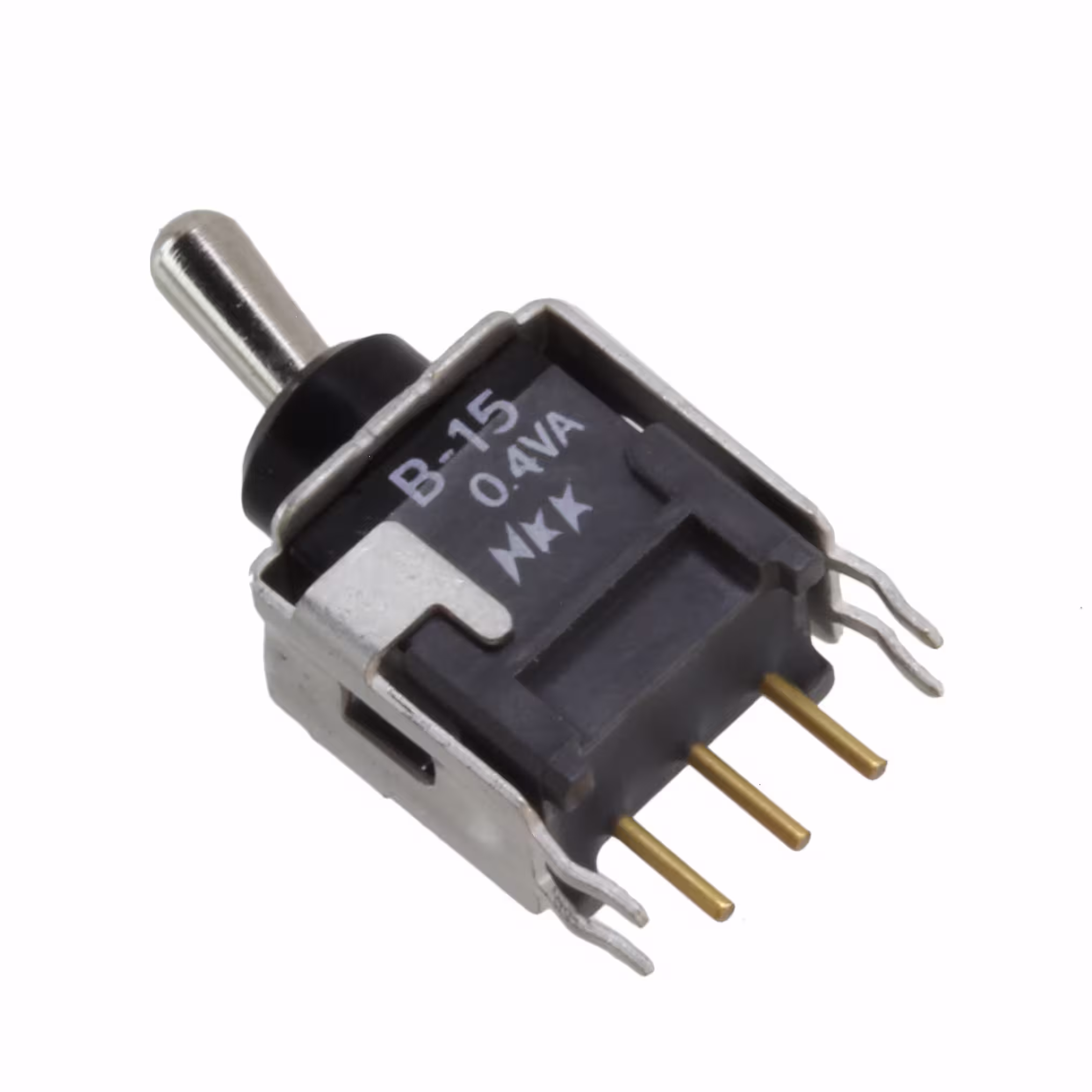

B15JBSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
109 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

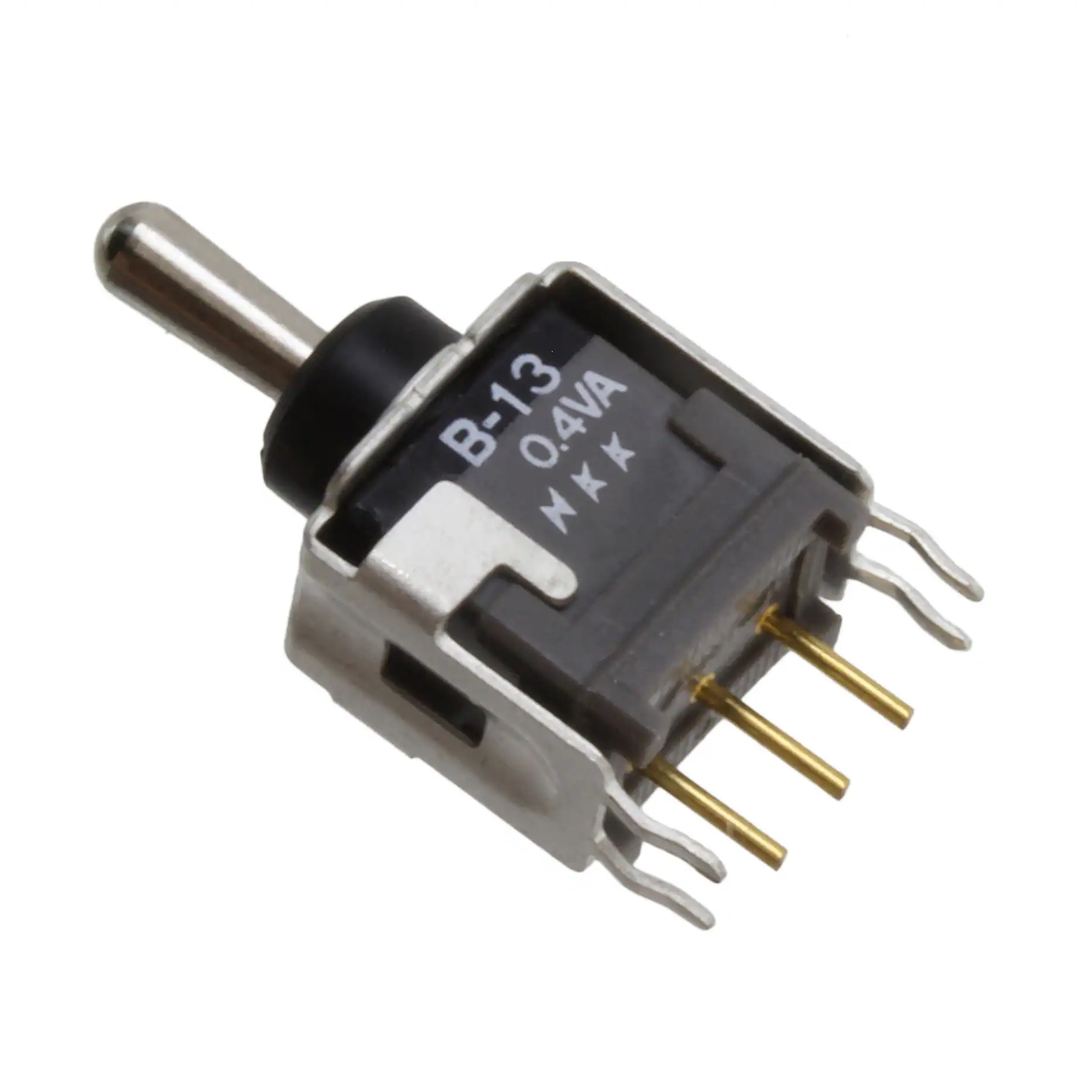

B13JBSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
178 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

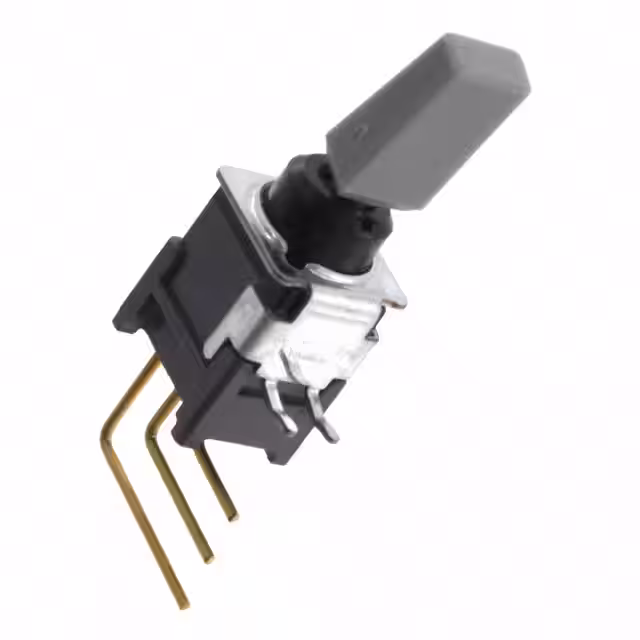

B12KV-AHSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
208 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
B15AHSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
19 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

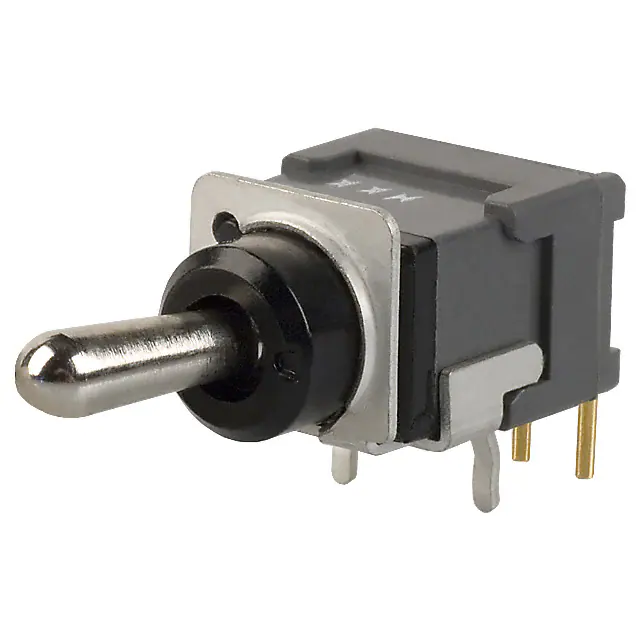

B15JHSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
120 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
