Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN42BB1W01BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
13 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN42LL1W01SWITCH TOGGLE NKK Switches |
37 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MNL12TCW01SWITCH TOGGLE NKK Switches |
9 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -10°C ~ 55°C |
|
WT15TSWITCH TOGGLE SPDT 10A 125V NKK Switches |
16 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
|
MN32SS1G03SWITCH TOGGLE NKK Switches |
19 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN32S2A2G40SWITCH TOGGLE NKK Switches |
41 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN13WBW01SWITCH TOGGLE 6A 125V NKK Switches |
76 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | - | - |
|
S39SWITCH TOGGLE 3PDT 15A 125V NKK Switches |
22 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

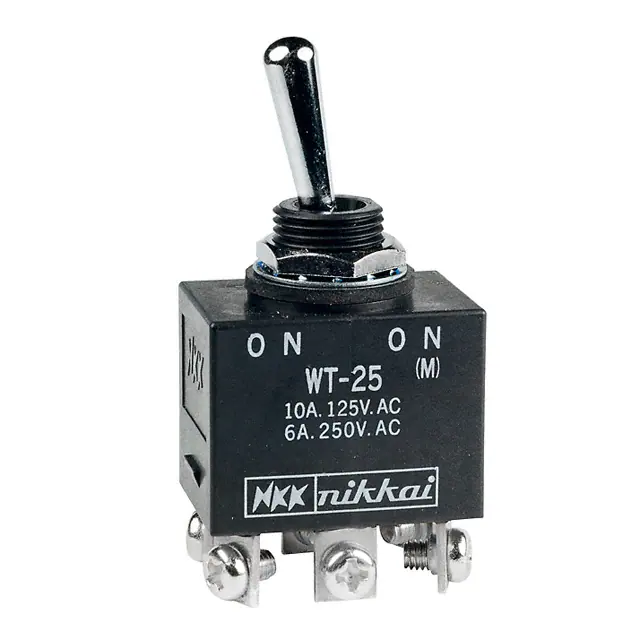

WT25TSWITCH TOGGLE DPDT 10A 125V NKK Switches |
34 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
|
MN28WBW01SWITCH TOGGLE NKK Switches |
21 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
