Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22LL4W01SWITCH TOGGLE NKK Switches |
136 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
B12JJVCFSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
293 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
S332TSWITCH TOGGLE DPDT 15A 125V NKK Switches |
129 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S8AWFSWITCH TOGGLE SPDT 15A 125V NKK Switches |
292 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
S32FSWITCH TOGGLE 3PDT 20A 125V NKK Switches |
528 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

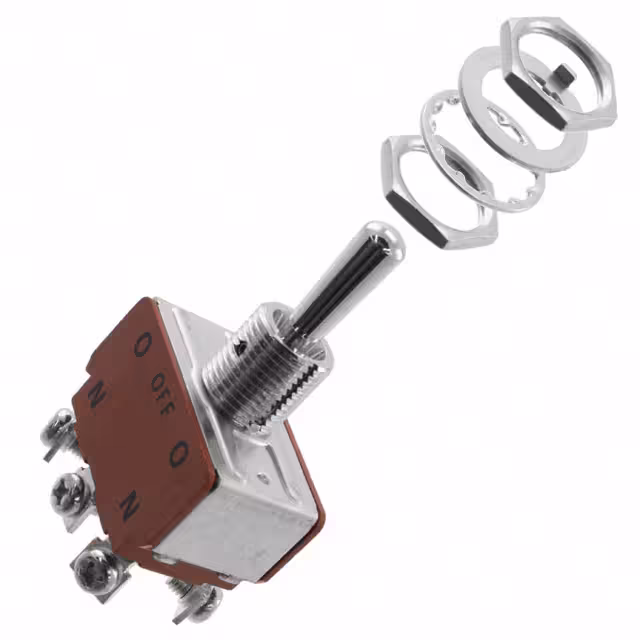

S333TSWITCH TOGGLE DPDT 15A 125V NKK Switches |
123 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

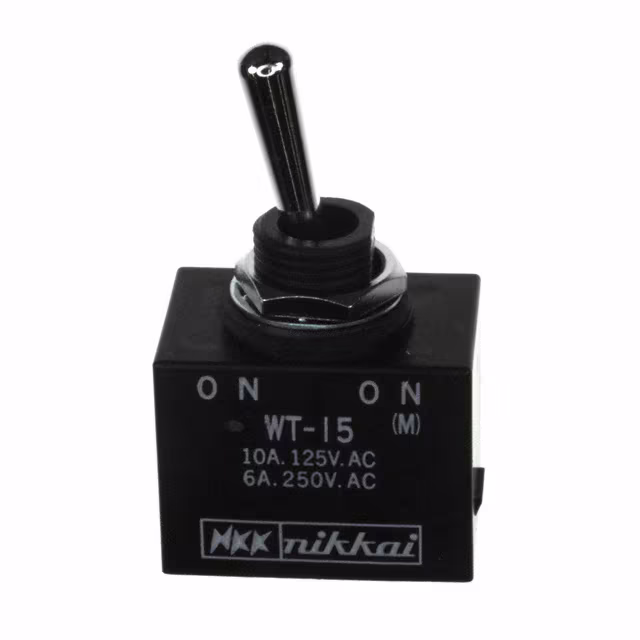

WT15SSWITCH TOGGLE SPDT 10A 125V NKK Switches |
304 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S3ALSWITCH TOGGLE SPDT 15A 125V NKK Switches |
307 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

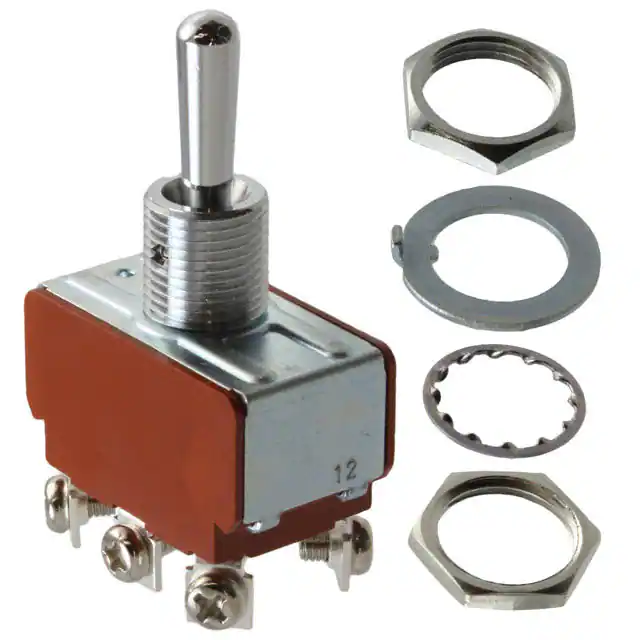

S338TSWITCH TOGGLE DPDT 15A 125V NKK Switches |
166 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S339TSWITCH TOGGLE DPDT 15A 125V NKK Switches |
129 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
