Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S831DSWITCH TOGGLE 3PST 30A 30V NKK Switches |
15 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
G3T12AB-SSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
50 |
|
Datasheet |
G3T | Tube | Active | Surface Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
G3T22AB-SSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
28 |
|
Datasheet |
G3T | Tube | Active | Surface Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
B2RJHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G3T29AB-SSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
46 |
|
Datasheet |
G3T | Tube | Active | Surface Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

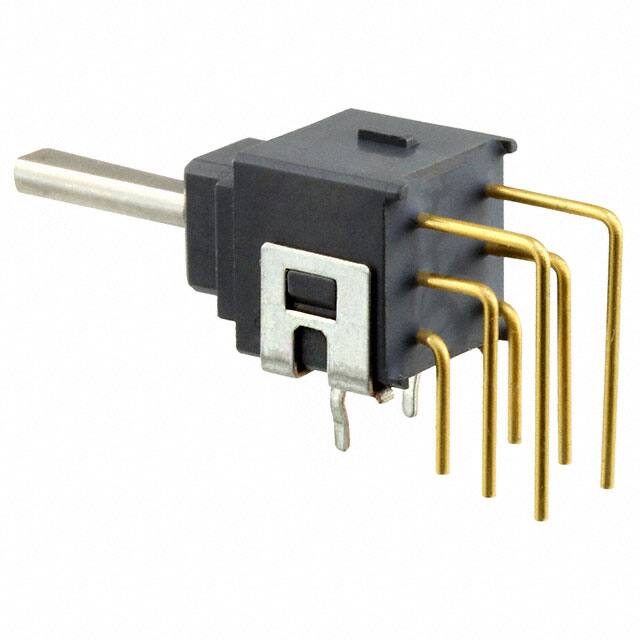

A23EVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
68 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

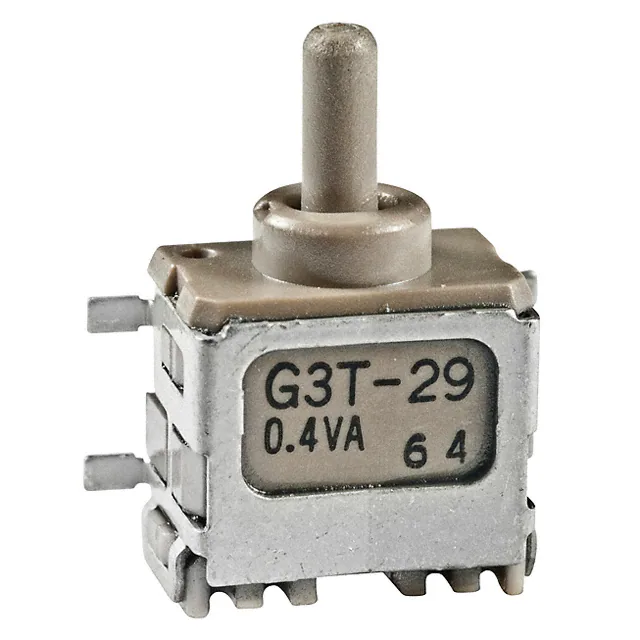

G3T29AHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
18 |
|
Datasheet |
G3T | Tray | Active | Surface Mount, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
A27HBSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
1 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
S5AW-WLSWITCH TOGGLE SPDT 15A 125V NKK Switches |
20 |
|
Datasheet |
S | Box | Active | Panel Mount | SPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
S428SWITCH TOGGLE DPDT 15A 125V NKK Switches |
12 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
