Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET210P12-ZSWITCH TOGGLE DPDT 10A 125V Nidec Components Corporation |
57 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

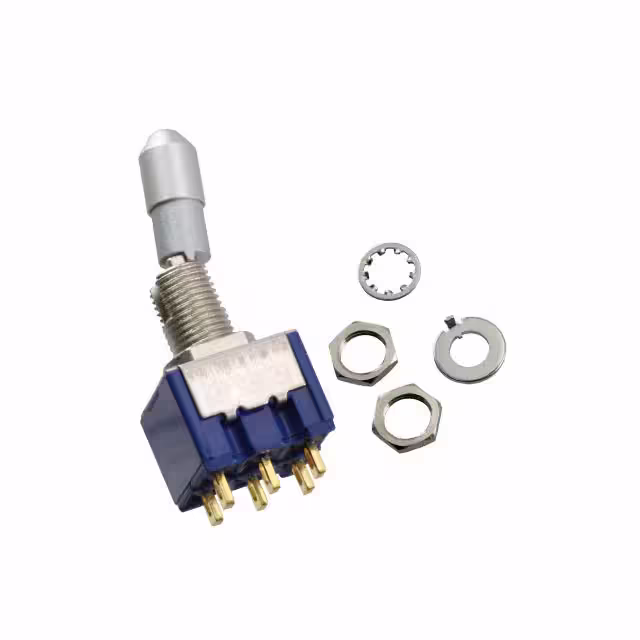

8E2011C-ZSWITCH TOGGLE DPDT 25MA 20V Nidec Components Corporation |
16 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

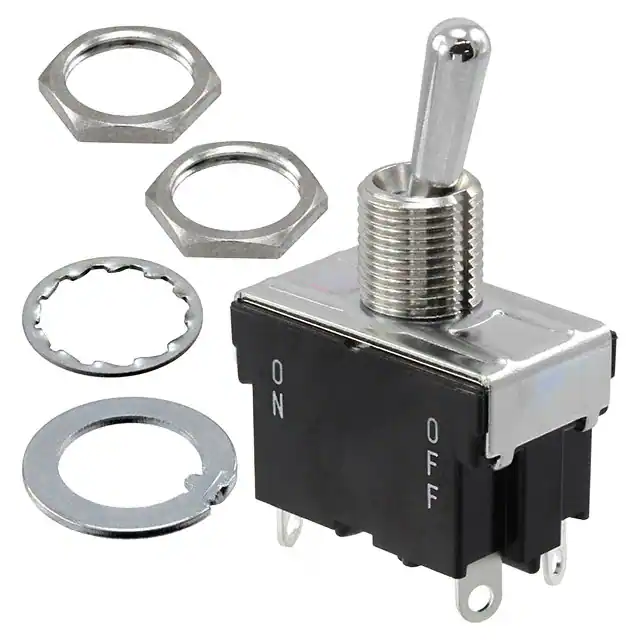

ET220K12-ZSWITCH TOGGLE DPST 20A 125V Nidec Components Corporation |
46 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
8A3012-ZSWITCH TOGGLE 3PDT 6A 125V Nidec Components Corporation |
22 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

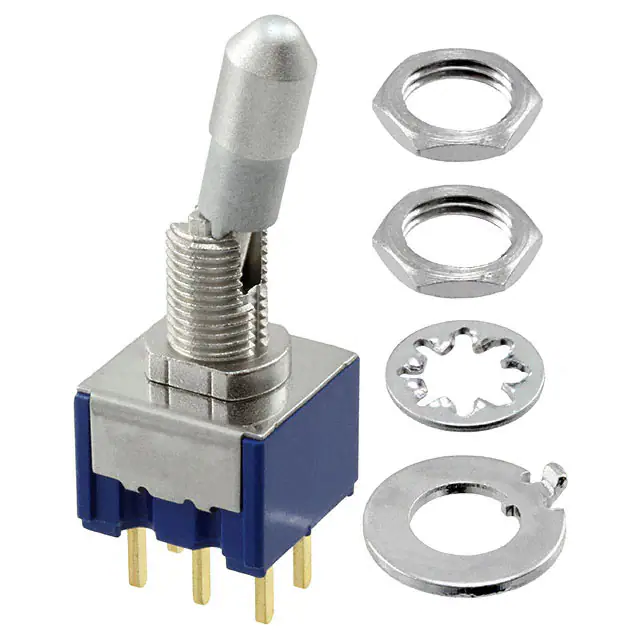

8E2012C-ZSWITCH TOGGLE DPDT 25MA 20V Nidec Components Corporation |
25 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
ET215N12-ZSWITCH TOGGLE DPDT 15A 125V Nidec Components Corporation |
20 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

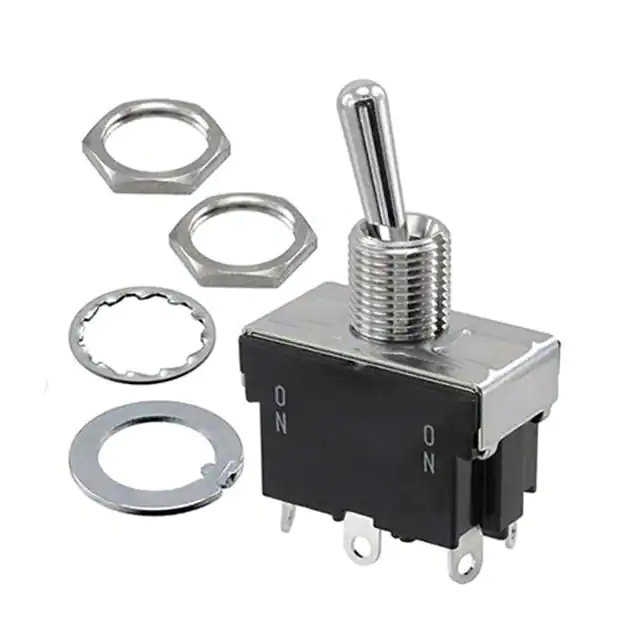

ET220N12-ZSWITCH TOGGLE DPDT 20A 125V Nidec Components Corporation |
51 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET115H12-ZSWITCH TOGGLE SPDT 15A 125V Nidec Components Corporation |
35 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

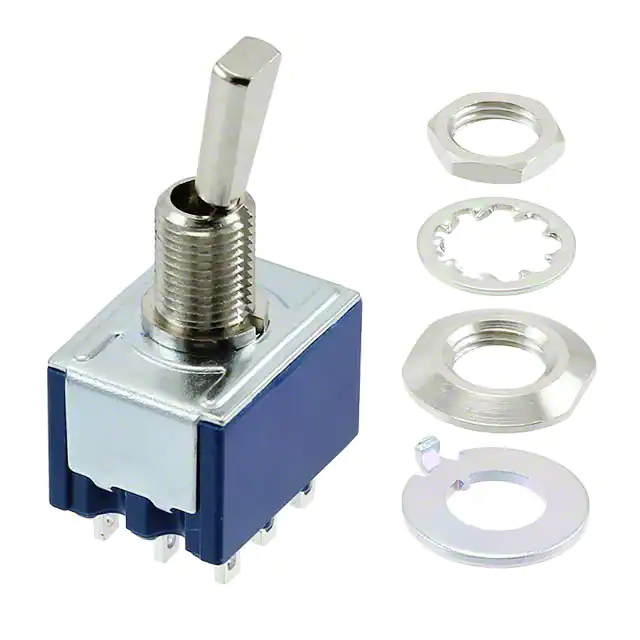

8C3011-ZSWITCH TOGGLE 3PDT 6A 125V Nidec Components Corporation |
48 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
ET215P12-ZSWITCH TOGGLE DPDT 15A 125V Nidec Components Corporation |
20 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
