Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

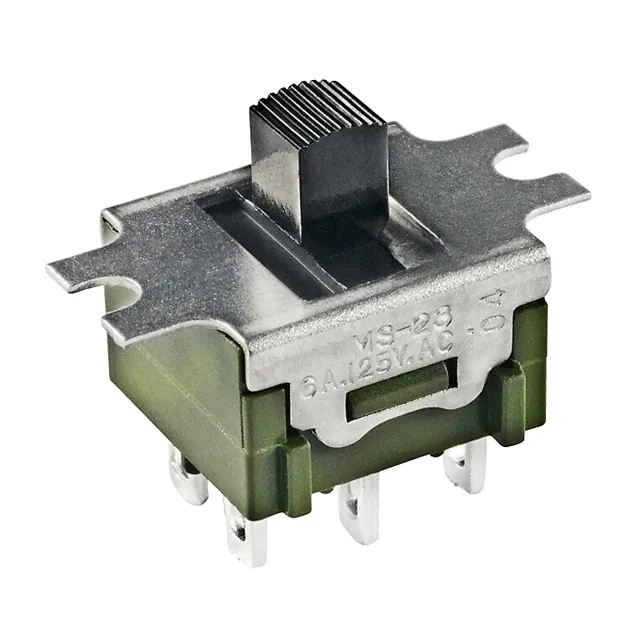

MS23AFW01SWITCH SLIDE DPDT 6A 125V NKK Switches |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
AS12BWSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

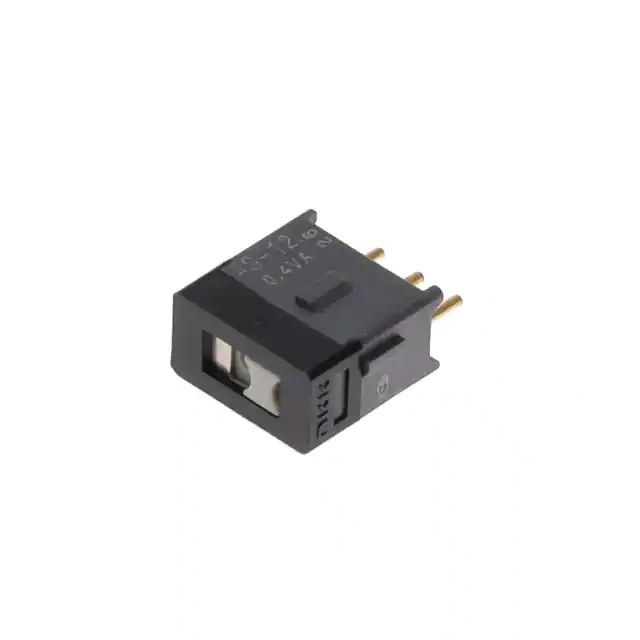

AS12BPSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS24BPSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
|
AS24BWSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Jumper needed to achieve triple throw |
|
|
AS24BBSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|

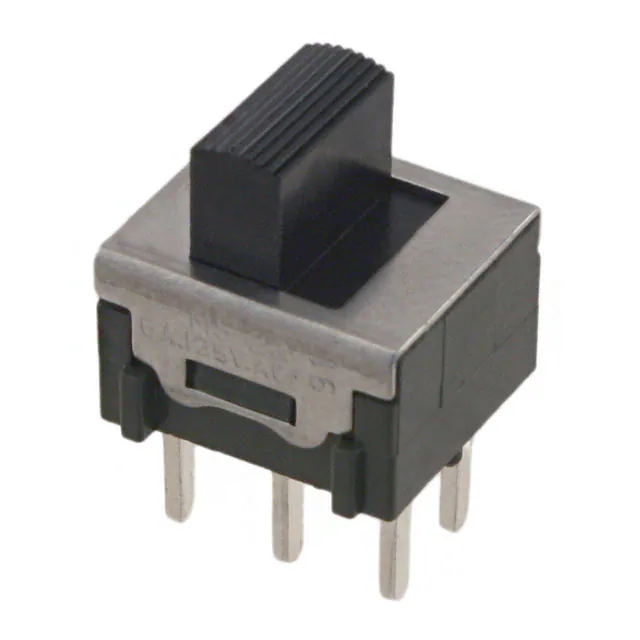

MS22BNW03SWITCH SLIDE DPDT 6A 125V NKK Switches |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS24BHSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Jumper needed to achieve triple throw |
|
|
AS24BVSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|
MS13ASW13SWITCH SLIDE SPDT 6A 125V NKK Switches |
0 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
