Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9924-Y-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP CEL |
0 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Tube | Active | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
PS9851-2-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP CEL |
0 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|

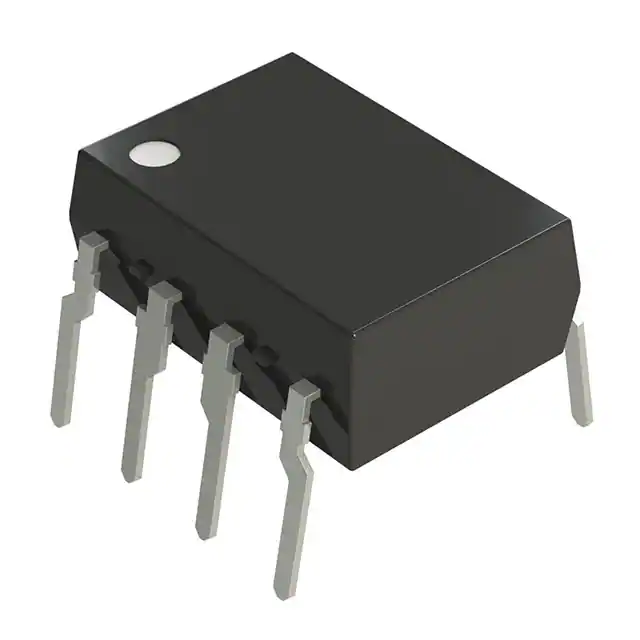

PS9601OPTOISO 5KV OPEN DRAIN 8DIP CEL |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9601LOPTOISO 5KV OPEN DRAIN 8SMD GW CEL |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
PS9701OPTOISO 2.5KV OPN COLLECTOR 5SOP CEL |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Obsolete | 1 | 1/0 | 2500Vrms | - | DC | Open Collector | 50 mA | - | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9613OPTOISO 5KV OPEN COLLECTOR 8DIP CEL |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
PS9613LOPTOISO 5KV OPEN COLL 8SMD GW CEL |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
PS9714-F3OPTOISO 2.5KV OPN COLLECTOR 5SOP CEL |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9814-1-F3-APHOTOCOUPLER 1-CHAN 10MBPS 8SOIC CEL |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | 1 | 1/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 10Mbps | - | - | - | 20mA | - | - | - | - | Surface Mount | 8-SSOP |
|
|
PS9814-2-F3-AOPTOISO 2.5KV 2CH OPEN COL 8SSOP CEL |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
