Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPI1268OPTOISO 16KV OPEN COLLECTOR TT Electronics/Optek Technology |
2,682 |
|
- |
- | 6-DIP (1.100", 27.94mm), 5 Leads | Tube | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 200ns, 100ns | - | 1.3V | 30mA | 7V | - | - | -40°C ~ 100°C | Through Hole | - |
|

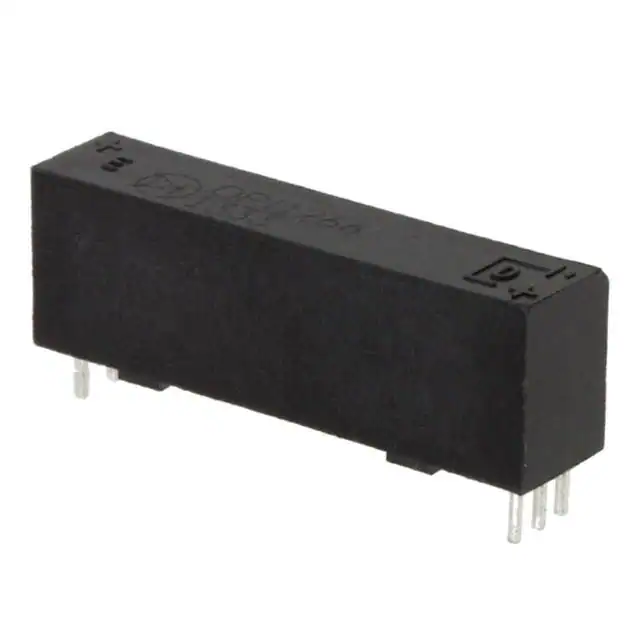

OPI1266OPTOISO 16KV OPEN COLLECTOR TT Electronics/Optek Technology |
305 |
|
- |
- | 5-DIP | Bulk | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector, Schottky Clamped | - | 500kbps | 800ns, 800ns | - | 1.2V | 50mA | 7V | - | - | -40°C ~ 70°C | Through Hole | - |
|
|
OPI1268SOPTOISO 20KV OPEN COLLECTOR TT Electronics/Optek Technology |
4,432 |
|
Datasheet |
- | 6-DIP (1.100", 27.94mm), 5 Leads | Tube | Active | 1 | 1/0 | 20000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 100ns, 100ns | - | 1.4V | 30mA | 7V | - | - | -50°C ~ 100°C | Through Hole | - |
|
OPI1290-080OPTOISO PUSH PULL TT Electronics/Optek Technology |
197 |
|
- |
- | Nonstandard, 5 Lead | Bulk | Active | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | 5µs, 5µs (Typ) | 25ns, 25ns | 2.3V (Max) | - | 4.5V ~ 16V | - | - | -20°C ~ 75°C | Through Hole | - |
|
|
OPI125TXOPTOISO 15KV PUSH PULL TT Electronics/Optek Technology |
0 |
|
Datasheet |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | 50 mA | 250kbps | 5ns, 5ns (Typ) | 8ns, 8ns | 1.4V | 100mA | - | - | - | -65°C ~ 125°C | Through Hole | Axial |
|
|
OPI126OPTOISO 15KV OPEN COLLECTOR TT Electronics/Optek Technology |
98 |
|
- |
- | - | Bulk | Active | 1 | 1/0 | 15000VDC | - | DC | Open Collector | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
OPI125TXVOPTOISO 15KV PUSH PULL TT Electronics/Optek Technology |
0 |
|
Datasheet |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | 50 mA | 250kbps | 5ns, 5ns (Typ) | 8ns, 8ns | 1.4V | 100mA | - | - | - | -65°C ~ 125°C | Through Hole | Axial |
|
|
OPL563AOPTOISO PUSH PULL TT Electronics/Optek Technology |
0 |
|
Datasheet |
- | 3-SIP, Side View | Bulk | Obsolete | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | - | - | - | - | 4.5V ~ 16V | - | - | -40°C ~ 85°C | Through Hole, Right Angle | - |
|
|
OPI1290-018OPTOISO PUSH PULL TT Electronics/Optek Technology |
0 |
|
Datasheet |
- | Nonstandard, 5 Lead | Bulk | Obsolete | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | 5µs, 5µs (Typ) | 25ns, 25ns | 2.3V (Max) | - | 4.5V ~ 16V | - | - | -20°C ~ 75°C | Through Hole | - |
|
|
OPI1290-040OPTOISO PUSH PULL TT Electronics/Optek Technology |
0 |
|
Datasheet |
- | Nonstandard, 5 Lead | Bulk | Obsolete | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | 5µs, 5µs (Typ) | 25ns, 25ns | 2.3V (Max) | - | 4.5V ~ 16V | - | - | -20°C ~ 75°C | Through Hole | - |
