Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC924L0YSZ0FOPTOISO 5KV 1CH GATE DVR 8DIP Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 600mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR, VDE |
|
PC928OPTOISO 4KV 1CH GATE DVR 14SMT Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 400mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|
|
PC929OPTOISO 4KV 1CH GATE DVR 14SMT Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|
|
PC923XOPTOISO 5KV 1CH GATE DVR 8DIP Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Through Hole | 8-DIP | - |
|
|
PC923X11OPTOISO 5KV 1CH GATE DVR 8DIP Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Through Hole | 8-DIP | - |
|
|
PC923XIOPTOISO 5KV 1CH GATE DVR 8SMD Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 8-SMD | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Surface Mount | 8-SMD | - |
|

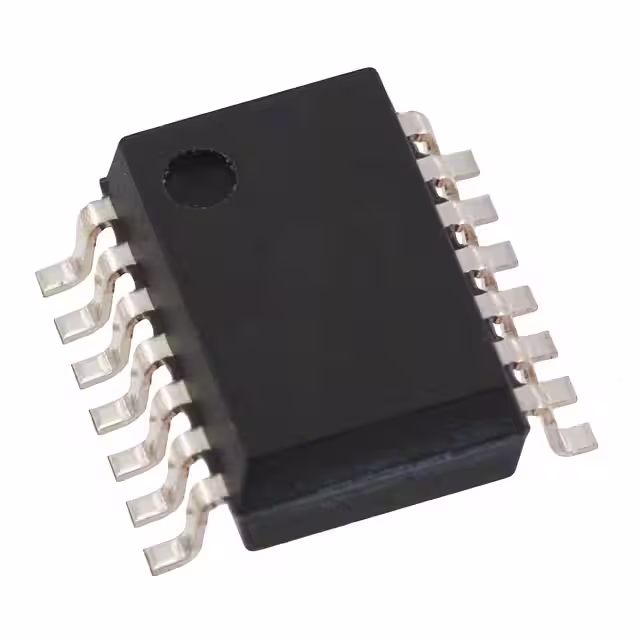

PC929J00000FOPTOISO 4KV 1CH GATE DVR 14SMT Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|

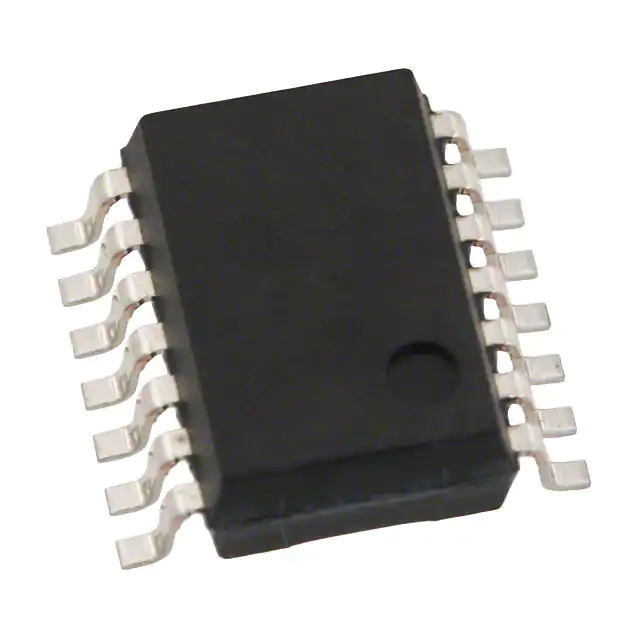

PC928J00000FOPTOISO 4KV 1CH GATE DVR 14SMT Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 400mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|
|
PC923L0YSZ0FOPTOISO 5KV 1CH GATE DVR 8DIP Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 600mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP | UR, VDE |
|
|
PC929PYJ000FOPTOISO 4KV 1CH GATE DVR 14SMT Sharp Microelectronics |
0 |
|
Datasheet |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR, VDE |
