Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

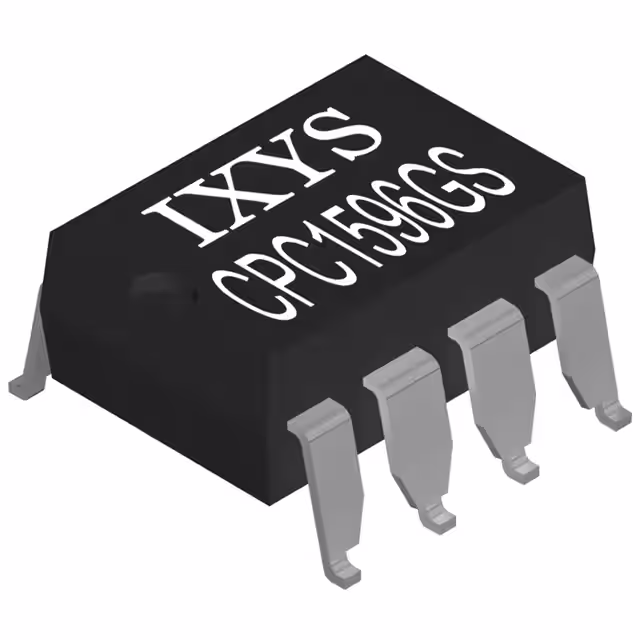

CPC1596GSTROPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
338 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 3750Vrms | - | - | - | - | 1A, 1A | 1A | 1.4V | 10 mA | 15V ~ 570V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | CSA, UL |
|
CPC3140GSTROPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 3750Vrms | - | 0.7µs, 1µs | - | 50ns, 50ns | 500mA, 500mA | 600mA | 1.5V | - | 10V ~ 30V | - | - | -40°C ~ 100°C | - | - | - |
|
|
IX3120GSTROPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
|
CPC3140GSOPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | - | 0.7µs, 1µs | - | 50ns, 50ns | 500mA, 500mA | 600mA | 1.5V | - | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | - | - |
|
IX3120GOPTOISO 3.75KV 1CH GATE DVR 8DIP IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
IX3120GSOPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
|
IX3120GEOPTOISO 3.75KV 1CH GATE DVR 8DIP IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | IEC/EN/DIN, UR |
|
|
IX3120GESOPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC/EN/DIN, UR |
|
|
IX3120GESTROPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.24V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC/EN/DIN, UR |
|
|
IX3180GSOPTOISO 3.75KV 1CH GATE DVR 8SMD IXYS Integrated Circuits Division |
0 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
