CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATF1504ASV-15AI100IC CPLD 64MC 15NS 100TQFP Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1504ASV-15JI68IC CPLD 64MC 15NS 68PLCC Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 68-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 48 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-PLCC (24.23x24.23) |
|
ATF1504ASV-15JI84IC CPLD 64MC 15NS 84PLCC Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|

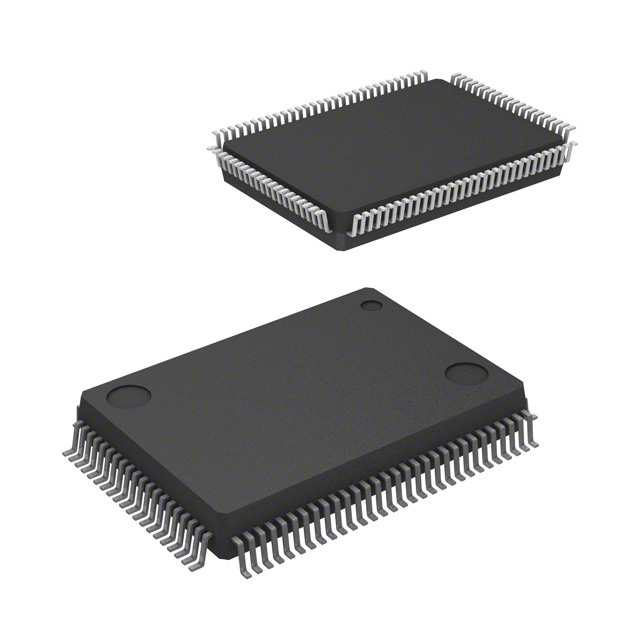

ATF1504ASV-15QI100IC CPLD 64MC 15NS 100QFP Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
|
ATF1504ASVL-20AI100IC CPLD 64MC 20NS 100TQFP Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1504ASVL-20AI44IC CPLD 64MC 20NS 44TQFP Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ATF1504ASVL-20JI44IC CPLD 64MC 20NS 44PLCC Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF1504ASVL-20JI68IC CPLD 64MC 20NS 68PLCC Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 68-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 48 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-PLCC (24.23x24.23) |
|
|
ATF1504ASVL-20JI84IC CPLD 64MC 20NS 84PLCC Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
ATF1504ASVL-20QC100IC CPLD 64MC 20NS 100QFP Microchip Technology |
0 |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
